Overview
Specifications
Documents
Product Overview

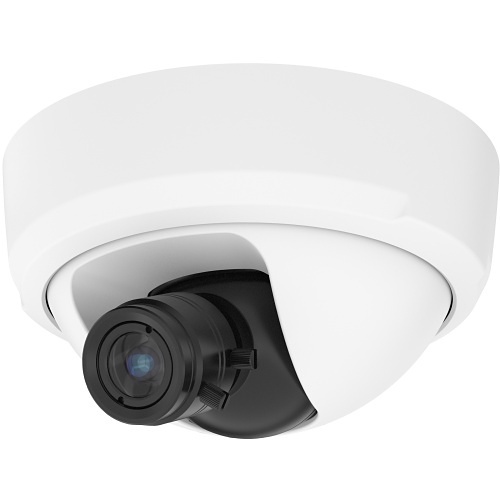

AXIS FA4115 is a compact varifocal dome sensor unit for discreet indoor video surveillance in stores, offices and banks. For use with an AXIS FA Main Unit, AXIS FA4115 provides a 1080p resolution and flexible viewing angles ranging from a 53º to 99º horizontal field of view. A narrower field of view enables finer details to be captured. In wide mode, more of a scene can be covered. AXIS FA4115 uses Forensic WDR (wide dynamic range) that is tuned for motion. The unit comes with a mounting bracket and an 8-m (26 ft) cable for connection to a main unit.
Main Features
- 99º –53º horizontal field of view
- Axis Corridor Format for vertically oriented coverage areas
- Flexible, compact dome for indoor surveillance
- Forensic WDR
- Varifocal lens with 1080p resolution
General Information
Name: AXIS FA4115 Dome Sensor Unit
Category: Axis Communications, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 7331021054318
Country of Origin: Thailand. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-01001001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 01001-001 Product Line FA Product Name AXIS FA4115 DOME SENSOR UNIT Product Series FA41 Product Type Sensor units
-
Aperture f/2.0 Field of View Horizontal, Vertical Lens Type Varifocal Maximum Frame Rate 30 fps
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
NDAA Compliant Yes
-
Image Sensor Size 1/3" Maximum Video Resolution 1920 x 1080
-
Operating Temperature (T-T) -20-50°C
-
Minimum Illumination 0.2 lux
-
Focal Length 2.8-6.0mm
-
Certifications EN 55024, EN 55032 Class B, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), KC KN32 Class B, KC KN35, RCM AS/NZS CISPR 32 Class B, VCCI Class B Compatibility Axis FA4115 Dome Sensor Country of Origin TH Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X Indoor/Outdoor Indoor
