Product Overview

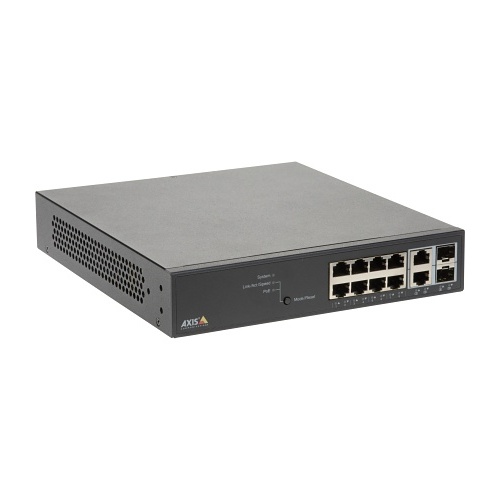

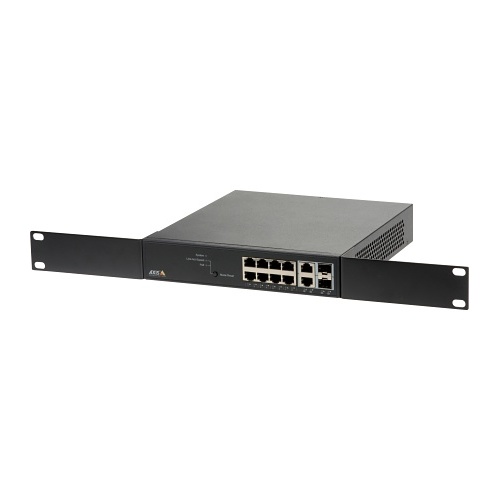

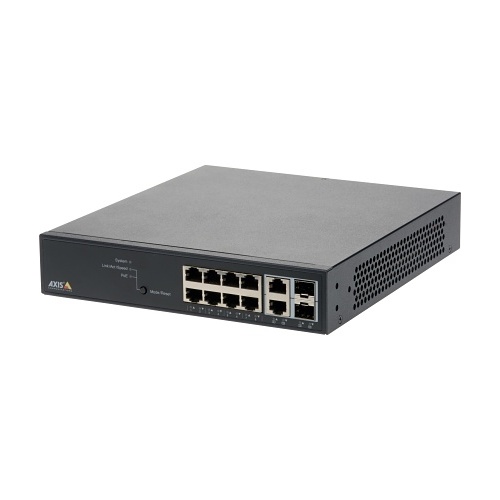

AXIS T8508 PoE+ Network Switch is an 8-port managed Gigabit switch with a compact, fan-less design for installation in noise sensitive environments or to be used as an edge switch. AXIS T8508 is a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 8 PoE cameras.
Main Features
- 2 SFP/RJ45 Combination Ports
- 30 W PoE per port, total 130 W
- Gigabit switch
- Intuitive graphic topology for system overview
General Information
Name: AXIS T8508 T85 Series 8-Port PoE+ Network Switch
Category: Axis Communications, Video Surveillance, Data Comm & Networking, Networking Devices, Hubs, Routers & Switches, Network Switches, Network Switches
UPC Code: 7331021061828
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-01191004 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 01191-004 Product Line T Product Model T8508 Product Name AXIS T8508 POE+ NETWORK SWITCH US Product Series T85 Product Type Network Switches Weight 4.63 lb
-
Media Type Supported Optical Fiber, Twisted Pair Network Switch Type Managed Power Consumption 30W
-
NDAA Compliant Yes TAA Compliant Yes
-
Operating Temperature (T-T) 0-50°C
-
Expansion Slot Type SFP Number of SFP Slots 2 Number of Total Expansion Slots 2 Shared SFP Slot Yes
-
Total Number of Network Ports 8 Uplink Port Yes
-
Manageable Yes Security Features IEC/EN 60950-1|IEC/EN 62368-1|UL 60950-1
-
Network Technology 1000Base-X
-
Ethernet Technology Gigabit Ethernet Layer Supported 2
-
Depth 9.5" Height 1.7" Material Metal Width 8.7"
-
Frequency 50 Hz|60 Hz Input Voltage 100-240V AC Maximum Power Consumption 25W PoE (RJ-45) Port Yes PoE Budget 30W Power Source Power Supply
-
Mount Type Desktop Mount
-
Limited Warranty 5-Year
-
Certifications EN 55024, EN 55032 Class A, EN 55035, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), RCM AS/NZS CISPR 32 Class A, VCCI Class A Environmental Certification UL Environmentally Friendly Yes Package Contents - T8508 PoE+ Network Switch
- Installation Guide
- Drill Template
- Power Cord
- 4 x Rubber Feet
