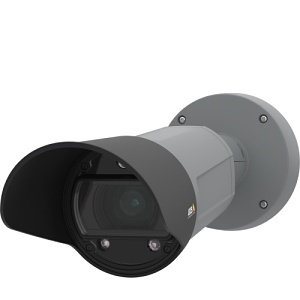

AXIS Q1700-LE Q17 Series 2MP License Plate Camera, Built-In Optimized IR at Speeds, 8x Optical Zoom, Grey
Q1700-LE|Z4-01782001
AXIS Q1700-LE Q17 Series 2MP License Plate Camera, Built-In Optimized IR at Speeds, 8x Optical Zoom, Grey
Q1700-LE|Z4-01782001
Key Features
What's Included
- 8x optical zoom
- Designed for third-party software
- Horizontal field of view of 16° - 2.3°
Key Features
What's Included
- 8x optical zoom
- Designed for third-party software
- Horizontal field of view of 16° - 2.3°
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- 8x optical zoom
- Designed for third-party software
- Horizontal field of view of 16° - 2.3°
Axis Communications
AXIS Q1700-LE Q17 Series 2MP License Plate Camera, Built-In Optimized IR at Speeds, 8x Optical Zoom, Grey
Q1700-LE | Z4-01782001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
AXIS Q1700-LE License Plate Camera delivers clear and sharp license plate images from vehicles moving at speeds of up to 130 km/h (81 mph) day and night. Thanks to a built-in license plate capture assistant, the camera is easy to setup and image settings are automatically adjusted to fit speed, installation height and vehicle distance in a specific traffic scene. A robust design ensures reliable operation in extreme weather conditions and in wind forces up to hurricane level. The camera is designed for usage with third-party edge or server-based software to perform license plate recognition and trigger actions.
Main Features
- 8x optical zoom
- Designed for third-party software
- Horizontal field of view of 16° - 2.3°
- OptimizedIR range up to 50 m (164 ft)
- Sharp license plates in HDTV 1080p / 2 MP
General Information
Name: AXIS Q1700-LE Q17 Series 2MP License Plate Camera, Built-In Optimized IR at Speeds, 8x Optical Zoom, Grey
Category: Axis Communications, Video Surveillance, IP Cameras, Bullet Cameras
UPC Code: 7331021067660
Country of Origin: Poland. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-01782001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 01782-001 Product Line Q Product Model Q1700-LE Product Name AXIS Q1700-LE Product Series Q17 Product Type Fixed cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 5.29 lb
-
Aperture f/2.9-4.1 Connectivity Technology Wired Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Aperture f/2.9 Maximum Frame Rate 60 fps Minimum Focal Length 18mm Night Vision Yes Night Vision Type Infrared Optical Zoom 8x Video Formats H.264, MJPEG, MPEG-4
-
Image Sensor Type CMOS Night Vision Distance 164.04 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66 NDAA Compliant Yes TAA Compliant Yes
-
Image Sensor Size 1/2.8" Maximum Video Resolution 1920 x 1080
-
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 100% Operating Temperature (T-T) -40-60°C
-
Longest Shutter Speed 1 Second Minimum Illumination 0 lux Shortest Shutter Speed 1/66500 Second
-
Network (RJ-45) Yes
-
Focal Length 18-137mm Lens Included Yes Maximum Focal Length 137 mm Minimum Aperture f/4
-
Memory Card Supported Yes
-
Remote Management Yes
-
Color Gray Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant Form Factor Bullet
-
Input Voltage 24V AC, 28V DC Maximum Power Consumption 14W Power over Ethernet (PoE) Yes
-
Diameter 5.8" Length 17.3" Mount Type Backbox Mount, Bracket Mount, Conduit Mount, Corner Mount, Pole Mount
-
Recording Formats Full HD Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Limited Warranty 5-Year
-
Certifications EAC, EN 50121-4, EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Features Active Tampering Alarm, Audio Detection, Built-in Infrared Illuminator, Built-in IR LED, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Removable IR Cut-off Filter, SD Card Local Storage, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor Package Contents Q1700-LE License Plate Camera Installation Guide Windows Decoder 1-user License Connector Kit Resistorx L-Key RJ45 Patch Cable
