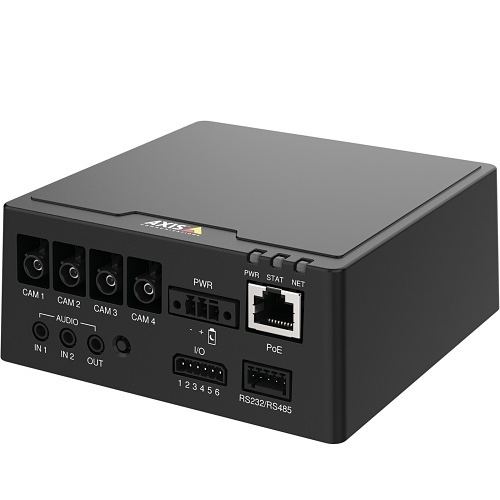

AXIS F9114 Series 2MP 4-channel Main Unit with Audio and I/O, Compatible with 2nd Generation Sensors and Cables
F9114|Z4-01991001
AXIS F9114 Series 2MP 4-channel Main Unit with Audio and I/O, Compatible with 2nd Generation Sensors and Cables
F9114|Z4-01991001
Key Features
- 1080p at 30 fps on all 4-channels
- Accelerometer, GPS, modbus support
- Built-in cybersecurity with Axis Edge Vault
Key Features
- 1080p at 30 fps on all 4-channels
- Accelerometer, GPS, modbus support
- Built-in cybersecurity with Axis Edge Vault
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 1080p at 30 fps on all 4-channels
- Accelerometer, GPS, modbus support
- Built-in cybersecurity with Axis Edge Vault
Axis Communications
AXIS F9114 Series 2MP 4-channel Main Unit with Audio and I/O, Compatible with 2nd Generation Sensors and Cables
F9114 | Z4-01991001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
AXIS F9114 is designed for use with up to four sensor units in discreet video surveillance applications. And it requires just one video management software (VMS) license. Ideal for emergency vehicles and buses, it features ignition control with controlled shutdown. AXIS Sensor Metrics Dashboard ACAP comes pre-installed in this main unit. The ACAP gathers information from the connected sensor devices and stores the data directly on the main unit SD-card. The built-in accelerometer alerts you if the vehicle deviates from normal movement. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Main Features
- 1080p at 30 fps on all 4-channels
- Accelerometer, GPS, modbus support
- Built-in cybersecurity with Axis Edge Vault
- Multiple sensor and cable options
- Rugged design and connectors
- Support for 2-way audio and I/O
- Zipstream, Lightfinder, Forensic WDR
General Information
Name: AXIS F9114 Series 2MP 4-channel Main Unit with Audio and I/O, Compatible with 2nd Generation Sensors and Cables
Category: Axis Communications, Video Surveillance, Video Accessories, Transmitters & Extenders
UPC Code: 7331021070516
Country of Origin: Poland. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-01991001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 01991-001 Product Line F Product Model F9114 Product Name AXIS F9114 MAIN UNIT Product Series F91 Product Type Main units Weight 1.49 lb
-
Maximum Video Resolution 1920 x 1080
-
Operating Temperature (T-T) -40-60°C
-
ADI Part Number Replaces Z4-0659001, Z4-0778001, Z4-0779004, Z4-0936004 Model Number Replaces 0659-001, 0778-001, 0779-004, 0936-004
-
Application/Usage Bus, Surveillance Color Black Material Aluminum
-
Power over Ethernet (PoE) Yes
-
Certifications CISPR 32 Class A, CISPR 35, EAC, ECE R10 rev.06, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, VCCI Class A Certifications & Standards ONVIF G, ONVIF S, ONVIF T Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC TR 60721-4-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP3X, IEC/EN 61373 Category 1 Class B, NEMA TS 2 (2.2.7-2.2.9)
