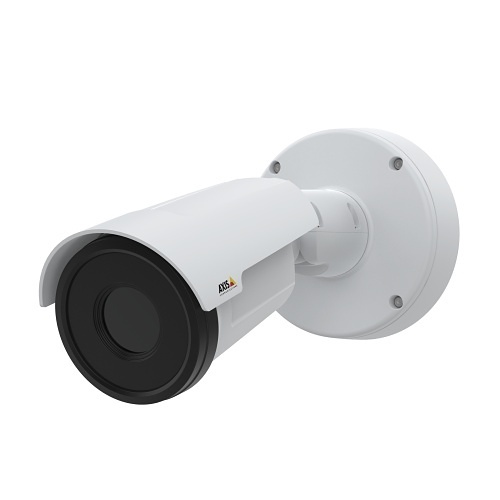

AXIS Q1952-E Q19 Series Hight-Quality Thermal Video Stream Camera, 35 mm Lens, White
Q1952-E|Z4-02162001
AXIS Q1952-E Q19 Series Hight-Quality Thermal Video Stream Camera, 35 mm Lens, White
Q1952-E|Z4-02162001
Key Features
What's Included
- Built-in cybersecurity features
- Compact, robust, halogen-free design
- Reliable detection 24/7
Key Features
What's Included
- Built-in cybersecurity features
- Compact, robust, halogen-free design
- Reliable detection 24/7
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Built-in cybersecurity features
- Compact, robust, halogen-free design
- Reliable detection 24/7
Axis Communications
AXIS Q1952-E Q19 Series Hight-Quality Thermal Video Stream Camera, 35 mm Lens, White
Q1952-E | Z4-02162001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
AXIS Q1952-E delivers a high-resolution thermal video stream for reliable detection 24/7. Ideal for perimeter security, it includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. With a powerful analytics platform, it’s easy to add third-party analytics. Built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. AXIS Q1952-E also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Furthermore, this halogen-free, compact camera is robust and suitable even for harsh conditions.
Main Features
- Built-in cybersecurity features
- Compact, robust, halogen-free design
- Reliable detection 24/7
- Support for AI-based analytics
- VGA with 640x480 thermal resolution
General Information
Name: AXIS Q1952-E Q19 Series Hight-Quality Thermal Video Stream Camera, 35 mm Lens, White
Category: Axis Communications, Video Surveillance, IP Cameras, Thermal Imaging Cameras
UPC Code: 7331021073890
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-02162001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02162-001 Product Line Q Product Model Q1952-E Product Name AXIS Q1952-E 35mm 30 fps Product Series Q19 Product Type Thermal cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 3.09 lb
-
Aperture f/1.14 Connectivity Technology Wired Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/1 Maximum Frame Rate 30 fps Video Formats H.264, H.265, MJPEG, MPEG-4
-
Image Sensor Type Uncooled Microbolometer Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP67 TAA Compliant Yes
-
Image Sensor Size 640 x 480 Maximum Video Resolution 800 x 600
-
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 100% Operating Temperature (T-T) -40-60°C
-
Network (RJ-45) Yes
-
Focal Length 35mm Lens Included Yes Maximum Thermal Focal Length 1.38"
-
Memory Card Supported Yes
-
Remote Management Yes
-
ADI Part Number Replaces Z4-0920001 Model Number Replaces 0920-001, Q1942-E
-
Color White Durability Dustproof, Impact Resistant, Waterproof
-
Maximum Power Consumption 13W Power over Ethernet (PoE) Yes
-
Diameter 5.2" Mount Type Ceiling Mount, Conduit Mount, Corner Mount, Gang Box Mount, Pole Mount, Wall Mount
-
Storage Type Memory Card
-
Limited Warranty 5-Year
-
Certifications CISPR 24, CISPR 35, EN 50121-4, EN 55024, EN 55032 Class A, EN 55032 Class B, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, FCC Part 15 Subpart B Class B, ICES-3(A)/NMB-3(A), ICES-3(B)/NMB-3(B), IEC 62236-4, KC KN32 Class A, KC KN32 Class B, KC KN35, RCM AS/NZS CISPR 32 Class A, RCM AS/NZS CISPR 32 Class B, VCCI Class A, VCCI Class B Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 510.7), MIL-STD-810H (Method 514.8), MIL-STD-810H (Method 516.8), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Features Audio Detection, HTTPS Encryption, Mirror, Motion Detection, Password Protection, SD Card Local Storage, Tampering Alarm Impact Protection Rating IK10 Indoor/Outdoor Outdoor Package Contents - Q1952-e thermal camera
- installation guide
- Windows decoder 1-user license
- Resistorx l-key
- Wall and ceiling mount bracket
- Terminal block connectors
- Connector guard
