AXIS 02208-001 Midspan AC/DC, 24VAC and 10-28VDC Input, 30W
02208-001|Z4-02208001
AXIS 02208-001 Midspan AC/DC, 24VAC and 10-28VDC Input, 30W
02208-001|Z4-02208001
Key Features
- 24 V AC and 10-28 V DC input
- Compatible with Axis PoE devices
- Flexible installation
Key Features
- 24 V AC and 10-28 V DC input
- Compatible with Axis PoE devices
- Flexible installation
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 24 V AC and 10-28 V DC input
- Compatible with Axis PoE devices
- Flexible installation
Axis Communications
AXIS 02208-001 Midspan AC/DC, 24VAC and 10-28VDC Input, 30W
02208-001 | Z4-02208001
Please sign in to view pricing and availability and to add to cart.
Recommended
0E-15WPOEINJ | 0E-15WPOEINJ
0E-15WPOEINJ | 0E-15WPOEINJ
Sign In for Dealer Pricing
Accessories
Surge Protection Modules
ADI # Z4-5801641
MODEL # 5801-641
5801-641|Z4-5801641
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

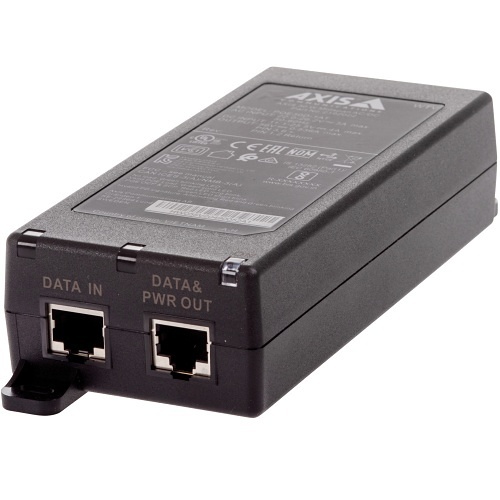

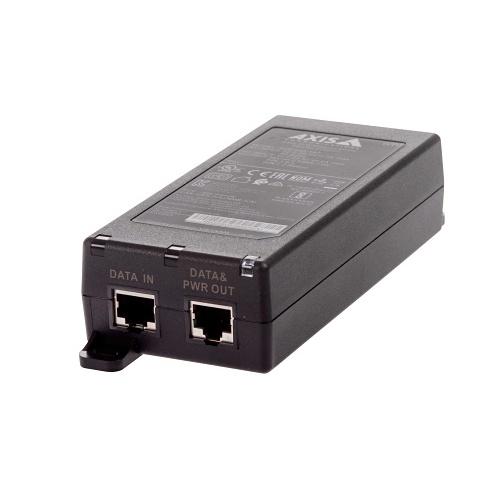

AXIS 30 W Midspan AC/DC is for installations where mains power is not an option. With a power input of either 10-28 V DC or 24 V AC, it can deliver up to IEEE 802.3at (30 W) to your network device. 24 V AC can be needed in harsh environments where new cabling or installations are not possible and you need to retrofit box, dome or PTZ cameras. 10-28 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it.
Main Features
- 24 V AC and 10-28 V DC input
- Compatible with Axis PoE devices
- Flexible installation
- IEEE 802.3af and 802.3at output
- Plug-and-play
General Information
Name: AXIS 02208-001 Midspan AC/DC, 24VAC and 10-28VDC Input, 30W
Category: Axis Communications, Data Comm & Networking, PoE Devices, PoE Injectors
UPC Code: 7331021074712
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-02208001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02208-001 Product Name AXIS 30 W MIDSPAN AC/DC Product Type Power over Ethernet Weight 8.22oz
-
NDAA Compliant Yes
-
Operating Temperature (T-T) -20-50°C
-
Input Ports Gigabit Ethernet Output Ports PoE
-
Security Features IEC/EN 62368-1|IS 13252|KC-Mark|UL 62368-1
-
Color Black Depth 1.5" Height 6.5" Width 2.6"
-
Maximum Output Power 30W Maximum Output Voltage 56 V DC PoE Budget 30W Power over Ethernet (PoE) Yes
-
Mount Type DIN Rail Mount, Shelf Mount, Wall Mount
-
Certifications EAC, EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, RCM AS/NZS CISPR 32 Class A, VCCI Class A Compatibility Network Device Country of Origin VN
