Overview
Specifications
Documents
Product Overview

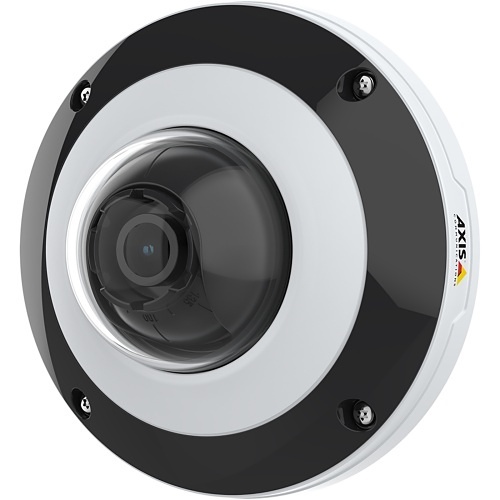

Ideal for various indoor and outdoor surveillance scenarios, this discreet dome sensor unit is designed for use with AXIS F91 main units to ensure lower installation and configuration costs. It connects to the main unit using cables up to 30 m (98 ft). It offers an 110º field of view for wide area coverage. Plus, it supports a wide range of exchangeable M12 lens options with different field of view. This robust sensor can withstand shock and vibrations and includes SMA connectors to ensure ruggedized installations. Additionally, with IR illumination, it delivers great image usability even in complete darkness.
Main Features
- 110º field of view
- 111º horizontal field of view
- Exchangeable M12 lenses
- For sterile environments
- IP6K9K rated
- IR illumination
- Only compatible with 2nd generation main units and cables
- Rugged sensor unit
- Up to 60 fps at 1080p and 180 fps at 720p
General Information
Name: AXIS F4105-LRE Bulk 8-Pack
Category: Axis Communications, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 7331021081345
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-02364021 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02364021 Packaged Quantity 8 Product Line F Product Model F4105-LRE Product Name AXIS F4105-LRE BULK 8 PCS Product Series F41 Product Type Sensor units Weight 1.30lb
-
Aperture f/2.0 Connectivity Technology Wired Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Mount Type M12 Lens Type Fixed Maximum Aperture f/2.0 Maximum Frame Rate 60fps Minimum Focal Length 2.8mm Night Vision Yes Night Vision Type Infrared Number of IR LEDs 2
-
Image Sensor Type CMOS Night Vision Distance 32.81 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP67, IP6K9K
-
Image Sensor Size 1/2.8" Maximum Video Resolution 1920 x 1200
-
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature -22°F (-30°C) Operating Humidity 1 Operating Temperature (T-T) -22-131°F
-
Minimum Illumination 0.3 lux
-
Focal Length 2.8mm Lens Included Yes Maximum Focal Length 2.80 mm
-
Color White Depth 3.3" Durability Dustproof, Impact Resistant, Shock Resistant, Vandal Resistant, Vibration Resistant, Waterproof Form Factor Dome Package Type Bulk
-
Diameter 4.4" Mount Type Bracket Mount, Junction Box Mount
-
Recording Formats Full HD
-
Maximum Resolution 1280 x 720
-
Limited Warranty 5-Year
-
Certifications ECE R10 rev.06, EN 50121-3-2, EN 50121-4, EN 50498, EN 55032 Class B, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), IEC 62236-4, KS C 9832 Class B, KS C 9835, RCM AS/NZS CISPR 32 Class B, VCCI Class B Environmental Certification EN 50155 Class OT4/ST2 (2007: Class TX), IEC 60068-2-27, IEC 60068-2-64, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 20653 IP6K9K, NEMA 250 Type 4X Features Day/Night, Motion Detection, Region of Interest, Removable IR Cut-off Filter, Rugged Design, Video Management System, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor Package Contents - F4105-LRE Dome Sensor
- Installation Guide
- Lens tool
