Product Overview

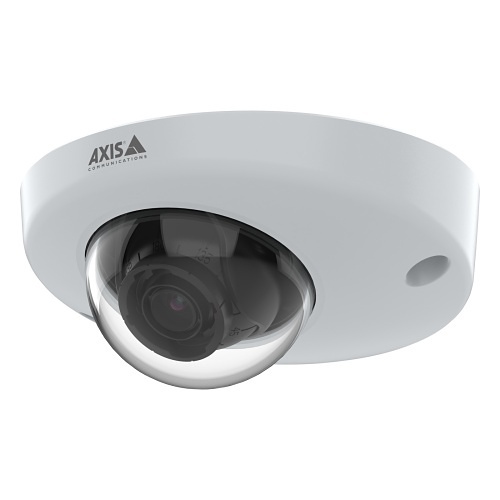

This compact and discreet 2 MP onboard camera complies with transportation-industry regulations including fire-safety for buses. It can withstand vibrations and a wide range of temperatures. Additionally, with AXIS TP3826-E housing this dome camera can be mounted on the outside of a bus. Thanks to Lightfinder and Forensic WDR, it provides details even in challenging light conditions. And with traffic light mode it can distinguish the color of traffic lights in dark scenes. Optional M12 lenses are available to adjust field of view for customized monitoring purposes.
Main Features
- 88° Horizontal field of view
- Compact, rugged design
- Lightfinder and Forensic WDR
- Traffic Light mode
- Zipstream
General Information
Name: AXIS M3905-R Dome Camera Bulk, 10-Pack
Category: Axis Communications, Video Surveillance, IP Cameras, IP Mobile & Dashboard Cameras
UPC Code: 7331021078314
Country of Origin: Poland. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-02501021 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02501021 Packaged Quantity 10 Product Line M Product Model M3905-R Product Name AXIS M3905-R RJ45 3.6 mm 10P Product Series M39 Product Type Fixed dome cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 8.50 oz
-
Aperture f/2.0 Connectivity Technology Wired Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/2.0 Maximum Frame Rate 45 fps Minimum Focal Length 3.6mm Video Formats H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, Zipstream
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP67 TAA Compliant Yes
-
Image Sensor Size 1/2.9" Maximum Video Resolution 1920 x 1080
-
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature -22°F (-30°C) Operating Humidity 100% Operating Temperature (T-T) -30-55°C
-
Longest Shutter Speed 1/5 Second Shortest Shutter Speed 1/19000 Second
-
Network (RJ-45) Yes
-
Focal Length 3.6mm Lens Included Yes Maximum Focal Length 3.6 mm
-
Memory Card Supported Yes
-
Remote Management Yes
-
Color White Durability Dust Resistant, Impact Resistant, Waterproof Form Factor Dome Height 2"
-
Maximum Power Consumption 3W Power over Ethernet (PoE) Yes
-
Diameter 4.3"
-
Recording Formats Full HD Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Certifications CISPR 32 Class A, ECE R10 rev.06, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF A, ONVIF C, ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin PL Environmental Certification IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10 Features 3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Back Light Compensation (BLC), Built-in HLC, Built-in IR LED, Day/Night, Defog, Face Detection, Motion Detection, Privacy Masking, Region of Interest Impact Protection Rating IK10 Indoor/Outdoor Outdoor
