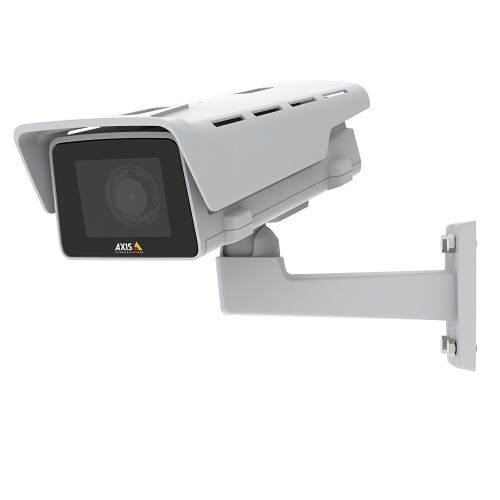

AXIS M1137-E Mk II M11 5MP Outdoor Box Camera with i-CS 3.5–10mm Lens, White
M1137-E
|Z4-02623001
Shop all Axis Communications
AXIS M1137-E Mk II M11 5MP Outdoor Box Camera with i-CS 3.5–10mm Lens, White
M1137-E | Z4-02623001
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This affordable, outdoor-ready camera is easy to install and operate. With PoE and redundant DC power, it ensures your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. Plus, audio input lets you record video with sound. The camera's CS-mount enables flexibility for exchangeable lenses. Thanks to AXIS Object Analytics you can detect and classify humans and vehicles. Furthermore, it comes enclosed in an IP66-, IK10-, and NEMA 4X-rated casing to protect against water, corrosion, dust, and impacts.
Main Features
- AXIS Object Analytics
- Audio input
- Compact and flexible design
- Lightfinder and Forensic WDR
- Remote zoom and focus with i-CS
General Information
Name: AXIS M1137-E Mk II M11 5MP Outdoor Box Camera with i-CS 3.5–10mm Lens, White
Category: Axis Communications, Video Surveillance, IP Cameras, Box Cameras
UPC Code: 7331021080263
Country of Origin: Poland. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02623001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02623-001 Product Line M Product Model M1137-E Mk II Product Name AXIS M1137-E MK II i-CS Product Series M11 Product Type Fixed cameras Supported Network Protocols IPv6 USGv6, NIST SP500-267
Aperture f/1.8 Connectivity Technology Wired Effective Camera Resolution 5MP Field of View Horizontal, Vertical Lens Mount Type i-CS Lens Type Varifocal Maximum Frame Rate 30fps Minimum Focal Length 3.5mm Night Vision Yes Optical Zoom 2.9x Video Formats H.264, H.265, MJPEG, MPEG-4
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP66
Image Sensor Size 1/2.7" Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -13°F (-25°C) Operating Humidity 1
Longest Shutter Speed 1/5 Second Minimum Illumination 0.04 lux Shortest Shutter Speed 1/33500 Second
Network (RJ-45) Yes
Focal Length 3.5-10mm Lens Included Yes Maximum Focal Length 10mm
Memory Card Supported Yes
Remote Management Yes
ADI Part Number Replaces Z4-01773001 Model Number Replaces 01773-001
Color White Durability Corrosion Resistant, Dust Resistant, Impact Resistant, Waterproof Weight 3.97lb
Input Voltage 10V DC, 28V DC Maximum Power Consumption 7W Power over Ethernet (PoE) Yes
Mount Type Box Mount, Wall Mount
Storage Type Memory Card
Maximum Resolution 1280 x 720
Limited Warranty 5-Year
Certifications EAC, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Features Audio Detection, Built-in Microphone, Day/Night, Mirror, Password Protection, Privacy Masking, SD Card Local Storage, Tampering Alarm, Vehicle Detection, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor Package Contents - M1137-E Mk II Box Camera
- AXIS T94Q01A Wall Mount
- Torx® T20 screw driver
- Torx® T30 screw bit
- connector kit
- installation guide
- Windows decoder 1-user license
