Overview

Specifications

Documents

Product Overview

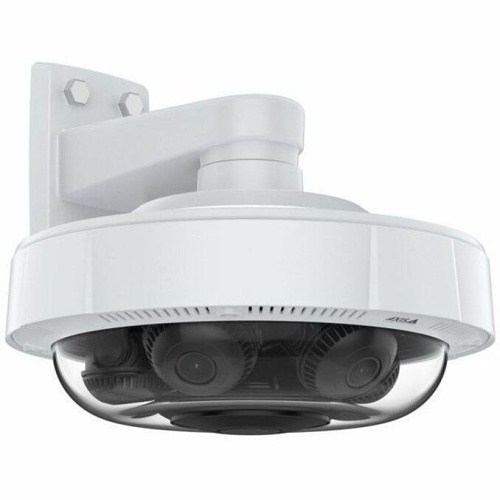

This multidirectional camera offers four channels with 2 MP per channel to deliver excellent overviews and detailed coverage. It includes 360° IR illumination for clear, reflection-free footage and excellent image quality even in low light or complete darkness. This flexible camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. With highly efficient power consumption, it ensures lower operating costs. It also supports powerful analytics based on deep learning. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, guarantees the device’s integrity and protects it from unauthorized access.

Main Features

360° IR illumination with individually controlled LEDs
4x 2 MP at 30 fps per channel
Axis Edge Vault safeguards the device
Flexible mounting options
Support for advanced analytics

General Information

Name: AXIS P3735-PLE P37 Series 4x 2MP AI-Powered Multidirectional Panoramic Camera, 3.2-8.1mm Varifocal Lens

Category: Axis Communications, Video Surveillance, IP Cameras, Panoramic Cameras

UPC Code: 7331021080621

Country of Origin: Mexico. Country of origin is subject to change.

Specifications

ADI Part Number

Z4-02633001

Brand Name

AXIS Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02633-001

Product Line

Product Model

P3735-PLE

Product Name

AXIS P3735-PLE

Product Series

P37

Product Type

Fixed dome cameras

Supported Network Protocols

IPv6 USGv6|NIST SP500-267

Weight

4.41lb

Aperture

f/1.9-3.24

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

Horizontal, Vertical

Lens Type

Varifocal

Maximum Aperture

F1.9-3.2

Maximum Frame Rate

30fps

Minimum Focal Length

3.2mm

Night Vision

Yes

Optical Zoom

2.5x

Video Formats

H.264, H.265, MJPEG, MPEG-4

Image Sensor Type

CMOS

Wide Dynamic Range

Yes

Ingress Protection Rating

IP66, IP67

TAA Compliant

Yes

Image Sensor Size

1/2.8"

Maximum Video Resolution

1920 x 1080

Number of Sensors

Maximum Operating Temperature

50 deg C

Minimum Operating Temperature

-30 deg C

Operating Humidity

Longest Shutter Speed

1.5 Second

Minimum Illumination

0 lux

Shortest Shutter Speed

1/28000 Second

Network (RJ-45)

Yes

Focal Length

3.18-8.12mm

Lens Included

Yes

Maximum Focal Length

8.10 mm

Minimum Aperture

f/3.2

Memory Card Supported

Yes

Remote Management

Yes

ADI Part Number Replaces

Z4-02218001

Model Number Replaces

02218-001

Color

White

Durability

Dustproof, Impact Resistant, Tamper Resistant, Waterproof

Maximum Power Consumption

23W

Power over Ethernet (PoE)

Yes

Recording Formats

Full HD

Storage Type

Memory Card/Cloud

Maximum Resolution

1280 x 720

Certifications

CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Certifications & Standards

ONVIF G, ONVIF M, ONVIF S, ONVIF T

Country of Origin

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), VDMA 24364

Features

360 deg IR illumination with individually controlled LEDs, 4 x 2 MP at 30 fps per channel, Axis Edge Vault safeguards the device, Flexible mounting options, Support for advanced analytics

Impact Protection Rating

IK09

Indoor/Outdoor

Outdoor
