AXIS P3738-PLE Multidirectional Panoramic Camera

P3738-PLE|Z4-02635001

Shop all Axis Communications

AXIS P3738-PLE Multidirectional Panoramic Camera

P3738-PLE|Z4-02635001

Key Features

360° IR illumination with individually controlled LEDs
4x 4K at 15 fps per channel
Axis Edge Vault safeguards the device

Key Features

360° IR illumination with individually controlled LEDs
4x 4K at 15 fps per channel
Axis Edge Vault safeguards the device

Sign In for Dealer Pricing

Become an ADI Customer

Key Features

360° IR illumination with individually controlled LEDs
4x 4K at 15 fps per channel
Axis Edge Vault safeguards the device

Axis Communications

AXIS P3738-PLE Multidirectional Panoramic Camera

P3738-PLE | Z4-02635001

Please sign in to view pricing and availability and to add to cart.

Accessories

Video Surveillance Monitors

W Box 0E-20LED2 20" Full HD Pro-Grade Color Monitor, HDMI, VGA, and BNC Inputs

ADI # 0E-20LED2

MODEL # 0E-20LED2

Capture Advance

Capture 0E-20LED2 20" Full HD Pro-Grade Color Monitor, 24/7/365 Operating Capability

0E-20LED2|0E-20LED2

Network Video Recorders (NVRs)

ADI # R2-32CHNVR

MODEL # R2-32CHNVR

Capture Advance

Capture Advance R2-32CHNVR 32-Channel NVR, H.265

R2-32CHNVR|R2-32CHNVR

Power Conditioners

ADI # WT-WB700IP12

MODEL # WT-WB700IP12

WattBox

WattBox WB-700-IPV-12 IP Power Conditioner with OvrC Home, 12-Controlled Outlets

WT-WB700IP12|WT-WB700IP12

Power Conditioners

ADI # WT-WB800IP12

MODEL # WT-WB800IP12

WattBox

WattBox WB-800-IPVM-12 800 Series IP Power Conditioner, 12-Individually Controlled and Metered Outlets

WT-WB800IP12|WT-WB800IP12

Video Surveillance Monitors

ADI # 0E-27LED3

MODEL # 0E-27LED3

Capture Advance

Capture 0E-27LED3 27" Select Series BNC Frameless LED Monitor

0E-27LED3|0E-27LED3

Overview

Specifications

Documents

Product Overview

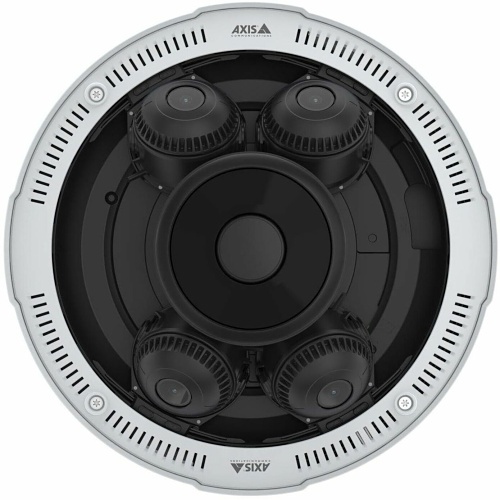

This multidirectional camera offers four channels with 4K per channel to deliver excellent overviews and detailed coverage. It includes 360° IR illumination for clear, reflection-free footage and excellent image quality even in low light or complete darkness. This flexible camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. With highly efficient power consumption, it ensures lower operating costs. It also supports powerful analytics based on deep learning. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, guarantees the device’s integrity and protects it from unauthorized access.

Main Features

360° IR illumination with individually controlled LEDs
4x 4K at 15 fps per channel
Axis Edge Vault safeguards the device
Flexible mounting options
Support for advanced analytics

General Information

Name: AXIS P3738-PLE Multidirectional Panoramic Camera

Category: Axis Communications, Video Surveillance, IP Cameras, Panoramic Cameras

UPC Code: 7331021080645

Country of Origin: Mexico. Country of origin is subject to change.

Specifications

ADI Part Number

Z4-02635001

Brand Name

AXIS Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02635-001

Product Line

Product Model

P3738-PLE

Product Name

AXIS P3738-PLE

Product Series

P37

Product Type

Fixed dome cameras

Supported Network Protocols

IPv6 USGv6|NIST SP500-267

Weight

4.41lb

Aperture

f/1.9-3.2

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

Horizontal, Vertical

Lens Type

Varifocal

Maximum Aperture

F1.9-3.2

Maximum Frame Rate

15fps

Minimum Focal Length

3.2mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

2.5x

Video Formats

H.264, H.265, MJPEG, MPEG-4

Image Sensor Type

CMOS

Night Vision Distance

49.21 ft

Wide Dynamic Range

Yes

Ingress Protection Rating

IP66, IP67

TAA Compliant

Yes

Image Sensor Size

1/2.8"

Maximum Illumination

0 lux

Maximum Video Resolution

3840 x 2160

Number of Sensors

Maximum Operating Temperature

50 deg C

Minimum Operating Temperature

-30 deg C

Operating Humidity

Longest Shutter Speed

2 Second

Minimum Illumination

0 lux

Shortest Shutter Speed

1/16000 Second

Network (RJ-45)

Yes

Focal Length

3.18-8.12mm

Lens Included

Yes

Maximum Focal Length

8.10 mm

Minimum Aperture

f/3.2

Memory Card Supported

Yes

Remote Management

Yes

ADI Part Number Replaces

Z4-01500001

Model Number Replaces

01500-001

Color

White

Durability

Dustproof, Impact Resistant, Waterproof

Form Factor

Dome

Height

3.6"

Maximum Power Consumption

26W

Power over Ethernet (PoE)

Yes

Diameter

10"

Mount Type

Bracket Mount, Conduit Mount, Junction Box Mount

Recording Formats

Storage Type

Memory Card/Cloud

Maximum Resolution

1280 x 720

Certifications

CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Certifications & Standards

ONVIF G, ONVIF M, ONVIF S, ONVIF T

Country of Origin

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), VDMA 24364

Features

360 deg IR illumination with individually controlled LEDs, 4 x 4 K at 15 fps per channel, Axis Edge Vault safeguards the device, Flexible mounting options, Support for advanced analytics

Impact Protection Rating

IK09

Indoor/Outdoor

Outdoor
