Product Overview

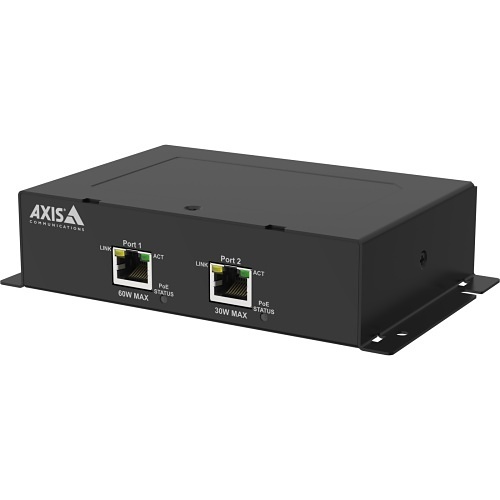

AXIS TU8010 2-port PoE Extender extends the connection of your network up to 100 m (328 ft). This 2-port PoE extender can supply power to two 30 W devices or one 60 W device. It’s compatible with Axis products with PoE and supports IEEE 802.3bt. With plenum rating, it offers flexible installation and can withstand temperatures between -40 °C to 65 °C (-40 °F to 149 °F).
Main Features
- Connects to existing network
- Extend PoE connection with 100 m
- IEEE 802.3bt and High PoE 60 W compatible
- Plenum-rated
- Supports up to two 30 W devices
General Information
Name: AXIS TU8010 2-Port PoE Extender
Category: Axis Communications, Data Comm & Networking, PoE Devices
UPC Code: 7331021082571
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02726001 Brand Name AXIS Communications Manufacturer Part Number 02726-001 Product Line TU Product Name AXIS TU8010 2-port PoE Extender Product Series TU80 Product Type PoE Extenders
Maximum Data Transfer Rate 1000BASE-T, 100BASE-TX, 110BASE-T
Ingress Protection Rating IP30
Operating Temperature (T-T) -40-149°F Storage Temperature (T-T) -40-185°F
Number of PoE (RJ-45) Ports 2
Security Features BSMI-mark, CAN/CSA C22.2 No. 62368-1 ed.3, IEC/EN 62368-1 ed.3, NOM-001, UL 62368-1 ed.3
Maximum Power Consumption 7W
Limited Warranty 3-Year
Certifications CNS 15936, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Environmental Certification BSMI, C, CE, KC, NOM, RCM, UL/cUL, VCCI Environmentally Friendly Yes
