Product Overview

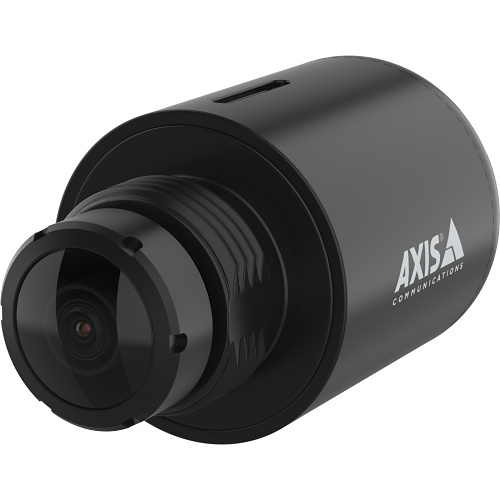

This sensor unit delivers 5 MP and a 185° horizontal field of panoramic view. With a small cylinder-shaped form factor, it offers discreet installation. Designed to work with AXIS F91 Main Units, it can be combined with up to three other sensor units for maximum flexibility. Reliable under rough conditions, it has an operating temperature range from -40 °C to 60°C (-40 °F to 140 °F). It’s compatible with the same accessories as other F21 sensors to simplify procurement, installation, and upgrade. Furthermore, this rugged sensor features SMA connectors and can withstand shock and vibration.
Main Features
- 185° horizontal field of view
- Can be installed in vehicles and machinery
- High-quality 5 MP resolution
- IP66-/IP67-/IP6K9K-rated
- Rugged sensor unit with SMA connector
General Information
Name: AXIS F2137-RE 5MP Discreet Fisheye Sensor
Category: Axis Communications, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code: 7331021085961
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number Z4-02869021 Brand Name AXIS Communications Manufacturer Part Number 02869-021 Product Name AXIS F2137-RE FISHEYE SENSOR 8 pcs Product Type Sensor units
Aperture f/2.0 Field of View Horizontal, Vertical Lens Mount Type M12 Maximum Frame Rate 60fps
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67, IP6K9K
Image Sensor Size 1/2.78" Maximum Video Resolution 2592 x 1944
Operating Temperature (T-T) -40-104°F
Minimum Illumination 0.25 lux
Focal Length 1.98mm
Certifications CISPR 32 Class A, CISPR 35, ECE R10 rev.05 (?E-ma?rk), ECE R10 rev.05 (?E-ma?rk), EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, KS C 9832 Class A, KS C 9835, VCCI Class A Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC TR 60721-4-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, ISO 20653 IP6K9K, ISO 21207 (Method B), NEMA 250 Type 4X Indoor/Outdoor Outdoor
