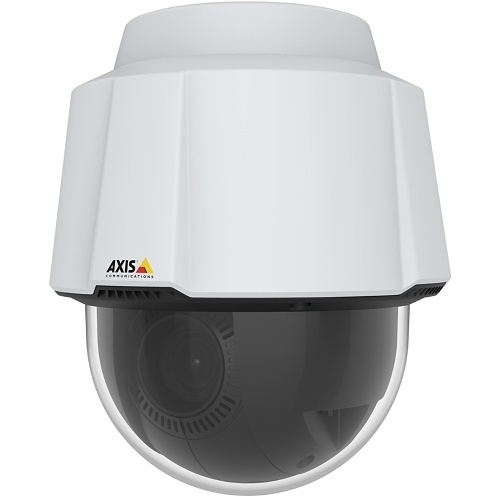

AXIS P5654-E Mk II 4MP Wide Angle PTZ with HDTV, 1080p and 21x Zoom, 4-84.6mm Lens, 50 Hz, White
P5654-E|Z4-02914001
AXIS P5654-E Mk II 4MP Wide Angle PTZ with HDTV, 1080p and 21x Zoom, 4-84.6mm Lens, 50 Hz, White
P5654-E|Z4-02914001
Key Features
What's Included
- Axis Edge Vault safeguards the device
- HDTV 1080p with 21x optical zoom
- Lightfinder 2.0 and Forensic WDR
Key Features
What's Included
- Axis Edge Vault safeguards the device
- HDTV 1080p with 21x optical zoom
- Lightfinder 2.0 and Forensic WDR
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Axis Edge Vault safeguards the device
- HDTV 1080p with 21x optical zoom
- Lightfinder 2.0 and Forensic WDR
Axis Communications
AXIS P5654-E Mk II 4MP Wide Angle PTZ with HDTV, 1080p and 21x Zoom, 4-84.6mm Lens, 50 Hz, White
P5654-E | Z4-02914001
Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
ADI # 0E-20LED2
MODEL # 0E-20LED2
0E-20LED2|0E-20LED2
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Network Video Recorders (NVRs)
ADI # VM-LUVR8CH6T
MODEL # VM-LUVR8CH6T
VM-LUVR8CH6T|VM-LUVR8CH6T
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
This cost-effective PTZ camera offers great image quality in HDTV 1080p with 21x optical zoom and wide area coverage with 77° field of view. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. Including Axis Object Analytics, it can detect and classify people and vehicles- all tailored to specific needs. With IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can handle temperatures ranging from -30 °C to 50 °C (-22 °F to 122 °F). Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
Main Features
- Axis Edge Vault safeguards the device
- HDTV 1080p with 21x optical zoom
- Lightfinder 2.0 and Forensic WDR
- Support for advanced analytics
- Wide 77° field of view
General Information
Name: AXIS P5654-E Mk II 4MP Wide Angle PTZ with HDTV, 1080p and 21x Zoom, 4-84.6mm Lens, 50 Hz, White
Category: Axis Communications, Video Surveillance, IP Cameras, PTZ Security Cameras
UPC Code: 7331021086258
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-02914001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02914001 Product Line P Product Model P5654-E Mk II Product Name AXIS P5654-E Mk II 50 Hz Product Series P56 Product Type PTZ cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 5.51lb
-
Aperture f/1.6-4.5 Connectivity Technology Wired Effective Camera Resolution 4MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Frame Rate 60 fps Minimum Focal Length 4mm Night Vision Yes Optical Zoom 21x Video Formats H.264, H.265, MJPEG, MPEG-4
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
Ingress Protection Rating IP66 TAA Compliant Yes
-
Image Sensor Size 1/2.8" Maximum Video Resolution 1920 x 1080
-
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -22°F (-30°C) Operating Humidity 100% Operating Temperature (T-T) -30-50°C
-
Longest Shutter Speed 2 Second Minimum Illumination 0.01 lux Shortest Shutter Speed 1/66500 Second
-
Network (RJ-45) Yes
-
Focal Length 4.0-84.6mm Lens Included Yes Maximum Focal Length 84.60 mm
-
Memory Card Supported Yes
-
Remote Management Yes
-
ADI Part Number Replaces Z4-01759001 Model Number Replaces 01759-001
-
Color White Durability Dustproof, Impact Resistant, Waterproof, Weather Resistant
-
Input Voltage 100V AC, 240V AC Maximum Power Consumption 16W Power over Ethernet (PoE) Yes
-
Mount Type Ceiling Mount
-
Recording Formats Full HD Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Limited Warranty 5-Year
-
Certifications CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin MX Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X Environmentally Friendly Yes Features Cross Line Detection, Day/Night, Defog, Electronic Image Stabilization, Fence Detector, Human Detection, Motion Detection, Password Protection, Removable IR Cut-off Filter, Shock Detection, Vehicle Detection Impact Protection Rating IK10 Indoor/Outdoor Outdoor Package Contents - P5654-E Mk II PTZ Network Camera
- RJ45 Push-Pull Connector (IP66)
- Hard Ceiling Mount
- Spring Pipe Adaptor
- U-Profile Pipe Adaptor
- Installation Guide
- and more below
