AXIS F4005 Series 1080p HDTV Rugged Design Main Unit Sensor Unit, 12m Cable, Black
F4005 | Z4-0798001
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview

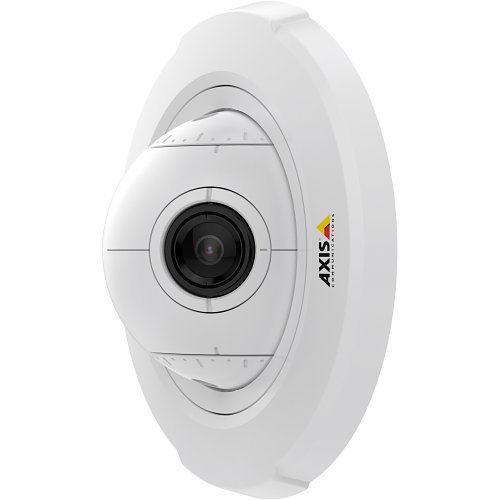

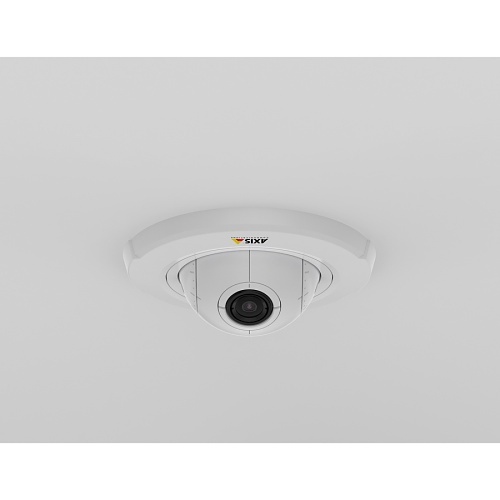

AXIS F4005 is a compact, easy-to-install recessed dome sensor unit for discreet video surveillance indoors in retail, office and banking environments. The included mounting adapter enables the sensor unit to be installed on hard surfaces as well.
Easy-to-install, recessed dome
For use with an AXIS F Main Unit, AXIS F4005 provides a 1080p resolution and a wide 113º horizontal field of view. It has a tilt range of 120°, enabling the sensor unit to be directed to the desired viewing area. AXIS F4005 also supports Axis' Corridor Format to suit more vertically oriented areas such as staircases, hallways and aisles. A rotation tool is supplied for leveling the image. The sensor unit comes with a 12-m (39 ft.) cable for connection to a main unit.
WDR - Forensic Capture
AXIS F4005 supports Wide Dynamic Range (WDR) - Forensic Capture, which can be activated when the sensor unit is connected to a main unit that supports this feature. WDR - Forensic Capture enables a high level of detail to be visible in both the bright and dark areas of a scene. AXIS F4005 has the same video performance as AXIS F1005-E Sensor Unit.
Main Features
- Compact, recessed dome for indoor surveillance
- Fixed lens with 1080p resolution
- Wide 113° horizontal field of view
- Supports WDR - Forensic Capture (with AXIS F41/F44 Main Unit)
- Supports Axis' Corridor Format
General Information
Specifications
-
ADI Part Number Z4-0798001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 0798-001 Product Line F Product Model F4005 Product Name F4005 Dome Sensor Unit Product Series F40 Product Type Network Camera Weight 1.17 lb
-
Connectivity Technology Wired Effective Camera Resolution 2MP Field of View Horizontal angle of view: 113° - Vertical angle of view: 62° Lens Type Fixed Maximum Aperture f/2 Maximum Frame Rate 60 fps Minimum Focal Length 2.8mm Video Formats H.264, MJPEG
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
Ingress Protection Rating IP66 NDAA Compliant Yes TAA Compliant Yes
-
Maximum Video Resolution 1920 x 1200
-
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature -30°F (-34.4°C) Operating Humidity 85%
-
Longest Shutter Speed 2 Second Shortest Shutter Speed 1/143000 Second
-
Network (RJ-45) Yes
-
Focal Length 2.8 mm Lens Included Yes Maximum Focal Length 2.8 mm
-
Remote Management Yes
-
Color Black Depth 1.5" Durability Dustproof, Waterproof Form Factor Dome
-
Diameter 4.4" Mount Type Recessed Mount
-
Recording Formats Full HD
-
Maximum Resolution 1280 x 720
-
Limited Warranty 5-Year
-
Country of Origin MX Features Auto Gain Control, Automatic White Balance, Motion Detection, Motion Tracking, Privacy Masking, Wide Dynamic Range Indoor/Outdoor Indoor Package Contents - F4005 Dome Sensor Unit
- Installation Guide
- Rotation Tool
