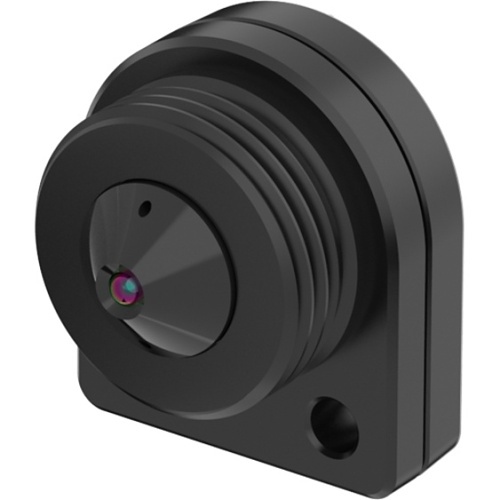

AXIS FA1125 FA Series 1080p Indoor WDR Sensor Unit, 3.7mm Pinhole Lens, Black
FA1125|Z4-0914001
AXIS FA1125 FA Series 1080p Indoor WDR Sensor Unit, 3.7mm Pinhole Lens, Black
FA1125|Z4-0914001
Key Features
- Flexible, extremely discreet design for indoor use
- Forensic WDR
- Pinhole lens with 1080p resolution
Key Features
- Flexible, extremely discreet design for indoor use
- Forensic WDR
- Pinhole lens with 1080p resolution
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Flexible, extremely discreet design for indoor use
- Forensic WDR
- Pinhole lens with 1080p resolution

Axis Communications
AXIS FA1125 FA Series 1080p Indoor WDR Sensor Unit, 3.7mm Pinhole Lens, Black
FA1125 | Z4-0914001
Please sign in to view pricing and availability and to add to cart.
Accessories
Network Video Recorders (NVRs)
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

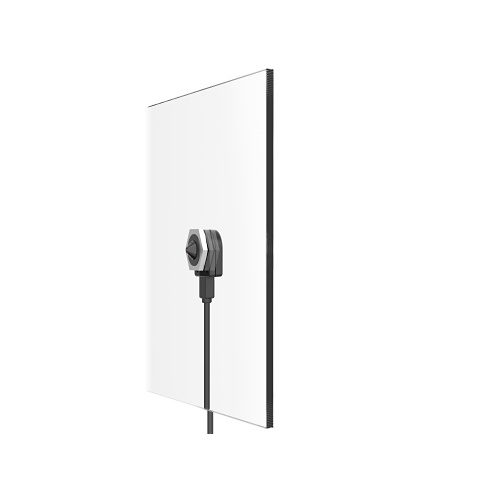

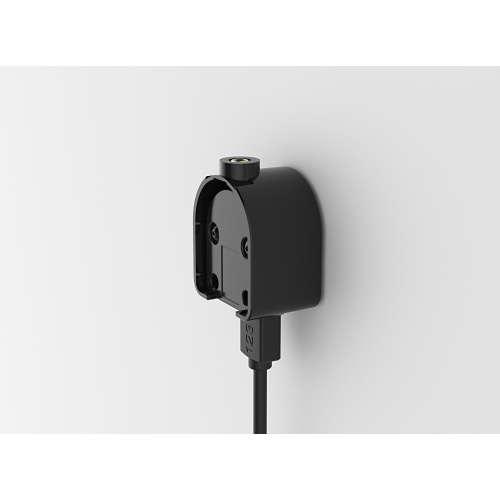

AXIS FA1125 is ideal for extremely discreet indoor surveillance applications in stores and banks, and when integrated in machines. It can be installed in tight places and flush-mounted in a wall, ceiling or metal panel with only a pinhole visible for the lens. For use with an AXIS FA Main Unit, AXIS FA1125 provides a 1080p resolution and a 91º horizontal field of view. AXIS FA1125 uses Forensic WDR (wide dynamic range) that is tuned for motion. The unit comes with a mounting bracket and an 8-m (26 ft.) cable for connection to a main unit.
Main Features
- Flexible, extremely discreet design for indoor use
- Forensic WDR
- Pinhole lens with 1080p resolution
- Wide 91º horizontal field of view
General Information
Name: AXIS FA1125 FA Series 1080p Indoor WDR Sensor Unit, 3.7mm Pinhole Lens, Black
Category: Axis Communications, Video Surveillance, IP Cameras, Covert Cameras
UPC Code: 7331021052314
Country of Origin: Thailand. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-0914001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 0914-001 Product Line F Product Model FA1125 Product Name AXIS FA1125 SENSOR UNIT Product Series FA11 Product Type Sensor units
-
Aperture f/2.5 Field of View Horizontal, Vertical Maximum Frame Rate 30 fps
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
NDAA Compliant Yes
-
Image Sensor Size 1/3" Maximum Video Resolution 1920 x 1080
-
Operating Temperature (T-T) -20-50°C
-
Minimum Illumination 0.25 lux
-
Focal Length 3.7mm
-
Color Black
-
Mount Type Flush Mount
-
Certifications EN 55024, EN 55032 Class B, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), KC KN32 Class B, KC KN35, RCM AS/NZS CISPR 32 Class B, VCCI Class B Compatibility Axis FA1125 Dome Sensor Country of Origin TH Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X Indoor/Outdoor Indoor
