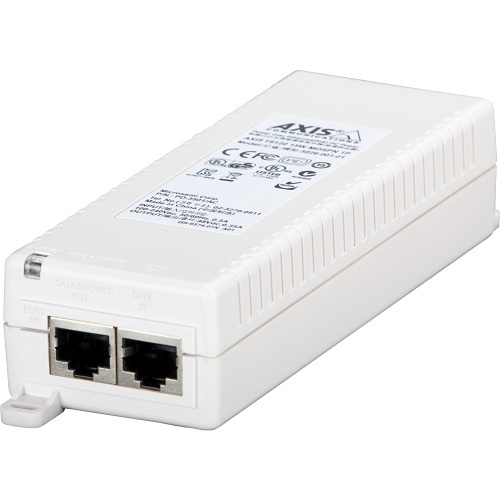

AXIS T8120 1-Port Midspan 15W, 10-Pack, White
Brand: AXIS Communications
ADI #:Z4-5026224
Model #: 5026-224
Name: AXIS T8120 1-Port Midspan 15W, 10-Pack, White
- Reduced installation costs
- Plug-and-play
Product Overview
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling. Simply connect the Axis PoE midspans and PoE splitters to the network, and the network video products are supplied with power.
Axis PoE midspans provide power (max. 15.4 W per port) over Ethernet cables to network video products with built-in PoE support. For a network video product without built-in PoE support, a PoE splitter must be used to separate power and data coming over the network cable.
General Information
Name : AXIS T8120 1-Port Midspan 15W, 10-Pack, White , AXIS CommunicationsCategory : PoE Injectors
UPC Code : 7331021003583
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : Z4-5026224
Brand Name : AXIS
Manufacturer : Axis Communications
Manufacturer Part Number : 5026-224
Packaged Quantity : 10 Pack
Product Model : T8120
Product Name : T8120 Midspan 15 W 1-port
Product Type : PoE Injector
Weight (Approximate) (g) : 450
Technical Information
Maximum Frequency (Hz) : 63
Interfaces/Ports
Output Ports : 1
Physical Characteristics
Depth : 5.7"
Depth (mm) : 145
Height : 1.2"
Height (mm) : 31
Weight (Approximate) : 15.87 oz
Width : 2.4"
Width (mm) : 60
Power Description
Input Voltage : 110 V AC, 220 V AC
Input Voltage (V AC) : 110, 220
Maximum Frequency : 63 Hz
Maximum Input Current : 500 mA
Maximum Input Current (A) : 0.5
Maximum Output Power : 15.40 W
Maximum Output Power (W) : 15.4
Maximum Output Voltage : 48 V DC
Maximum Output Voltage (V DC) : 48
Minimum Frequency : 47 Hz
Minimum Frequency (Hz) : 47
Product Information
Mount Type : Wall Mountable
Warranty
Limited Warranty : 3 Year
Miscellaneous
Certifications & Standards : <ul><li>IEEE 802.3</li><li>IEEE 802.3af</li><li>FCC Part 15 Class B</li><li>EN55022 (CISPR 22) Class B</li></ul><p><b>Safety:</b></p><ul><li>cUL</li><li>UL</li><li>TUV</li><li>CE</li></ul>
Compatibility : <ul><li>Video Encoders</li></ul><p><b>Axis Network Cameras:</b></p><ul><li>PTZ</li><li>PTZ Dome</li></ul>
