AXIS T98A17-VE Media Converter Cabinet A for P14 and P32 Series, 120VAC

Brand: AXIS Communications
ADI #:Z4-5505371 Model #: 5505-371  Name: AXIS T98A17-VE Media Converter Cabinet A for P14 and P32 Series, 120VAC
  • Vandal resistant
  • Compatible with different cameras
  • Ease of installation
5505-371 PRE-ASSMBL T98A SURVLNC CABNT

Product Overview

  • Pre-mounted accessories
  • Vandal resistant
  • Compatible with different cameras
  • Directly compatible with Axis DC-powered cameras

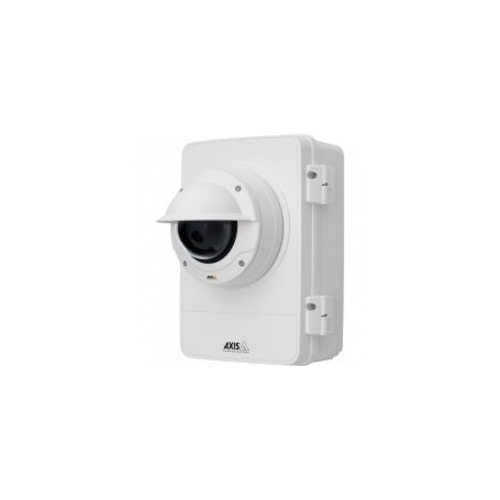

Custom designed for Axis cameras

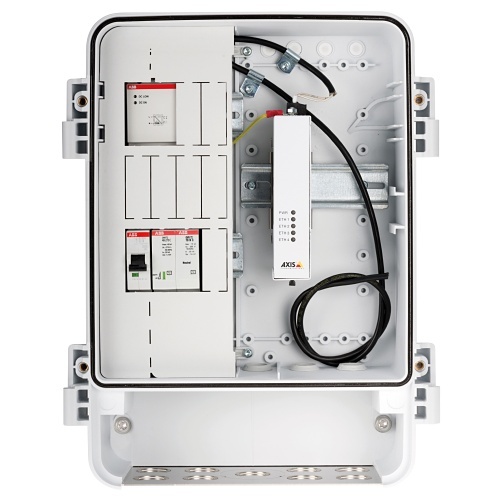

Pre-assembled cabinet including AXIS T8604 Media Converter Switch, surge protection and Power Supply DIN CP-D 12/2.1 25 W. AXIS Door Switch A is available as optional accessory. This cabinet is directly compatible with cameras listed below. Non DC-powered cameras with the same hole pattern will require a PoE midspan.

General Information

Name : AXIS T98A17-VE Media Converter Cabinet A for P14 and P32 Series, 120VAC , AXIS Communications
Category : Media Converters
UPC Code : 7331021043428
Country of Origin : Estonia. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : Z4-5505371
Brand Name : AXIS
Manufacturer : Axis Communications
Manufacturer Part Number : 5505-371
NDAA Compliant : Yes
Product Line : T
Product Model : T98A17-VE
Product Name : T98A17-VE Surveillance Cabinet
Product Series : T98A-VE
Product Type : Media Converter Chassis
Weight (Approximate) (g) : 3500

Physical Characteristics

Color : White
Depth : 5.2"
Depth (mm) : 132.08
Height : 14.2"
Height (mm) : 360.68
Weight (Approximate) : 7.72 lb
Width : 11.1"
Width (mm) : 281.94

Power Description

Input Voltage : 120 V AC, 230 V AC
Input Voltage (V AC) : 120, 230

Warranty

Limited Warranty : 3 Year

Miscellaneous

Certifications & Standards : <ul> <li>IEC/EN/UL 60950-1</li> <li>IEC/EN/UL 60950-22</li> <li>UL 50</li> <li>UL 50E</li> <li>IEC 60529 IP66</li> <li>NEMA 250 Type 4X</li> <li>IEC 60068-2-6 4M4</li> <li>IEC 60068-2-27 4M4</li> <li>IEC/EN 62262 IK10</li> </ul>
Compatibility : <b>Axis Network Cameras Series:</b><br /> <ul> <li>P14</li> <li>P32</li> </ul>
TAA Compliant : Yes
