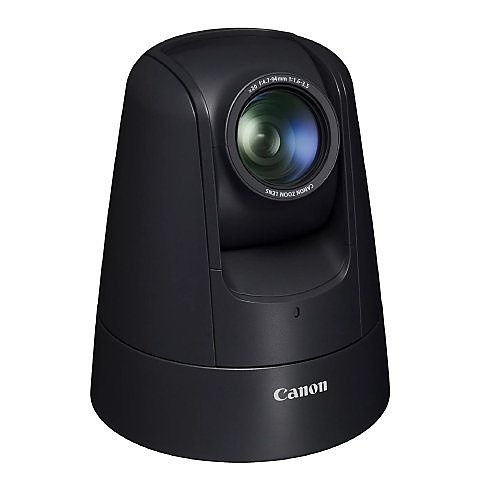

AXIS VB-H47 Canon 2MP WDR PTZ IP Camera, 20x Optical Zoom Lens, Black
AXIS VB-H47 Canon 2MP WDR PTZ IP Camera, 20x Optical Zoom Lens, Black
- Full HD 60 fps video stream and H.265 and H.264 support
- 20x Optical with 16x digital zoom and fast autofocus
- Remarkable low-light performance with color at 0.02 lux and mono at 0.003 lux
- Full HD 60 fps video stream and H.265 and H.264 support
- 20x Optical with 16x digital zoom and fast autofocus
- Remarkable low-light performance with color at 0.02 lux and mono at 0.003 lux
Sign In for Dealer Pricing
Become an ADI Customer- Full HD 60 fps video stream and H.265 and H.264 support
- 20x Optical with 16x digital zoom and fast autofocus
- Remarkable low-light performance with color at 0.02 lux and mono at 0.003 lux

AXIS VB-H47 Canon 2MP WDR PTZ IP Camera, 20x Optical Zoom Lens, Black
VB-H47 | Z4-5715C002
Please sign in to view pricing and availability and to add to cart.
Product Overview
The Canon VB-H47 Full HD PTZ IP security camera combines a powerful 320x zoom with excellent low-light capability, WDR (Wide Dynamic Range) function and fast auto-focus. The product offers flexible installation options for indoor use.
New image sensor and video network engine
Canon's popular network cameras have further evolved with the latest specifications and performance, equipped with a newimage sensorand video network engine, while maintaining various functions, compactness, and ease of use.
H.264 and H.265 support
The camera delivers a full HD 60 fps video stream and can simultaneously provide five streams including two H.265 or H.264 streams.
High PTZ performance
Canon VB-H47 offers f fast, high-precision pan/tilt/zoom (PTZ) capability to programmed pre-set positions.
Main Features
- Full HD 60 fps video stream and H.265 and H.264 support
- 20x Optical with 16x digital zoom and fast autofocus
- Remarkable low-light performance with color at 0.02 lux and mono at 0.003 lux
- Excellent WDR performance
General Information
Specifications
-
ADI Part Number Z4-5715C002 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 5715C002 Product Model VB-H47 Product Name Canon VB-H47 Product Type Network Camera Weight 2.43 lb
-
Connectivity Technology Wired Effective Camera Resolution 1MP Field of View Horizontal: 62.4° (W) - 3.3° (T) Vertical: 36.3° (W) - 1.9° (T) Lens Type Varifocal Maximum Aperture f/1.6 Maximum Frame Rate 60 fps Minimum Focal Length 4.7mm Night Vision Yes Optical Zoom 20x Video Formats H.264, H.265, JPEG, Smart H.265+ Video Signal Format PAL
-
Image Sensor Type CMOS Night Vision Distance 3.30 ft Wide Dynamic Range Yes
-
Maximum Video Resolution 1920 x 1080
-
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature 14°F (-10°C) Operating Humidity 85%
-
Longest Shutter Speed 1/1 Second Shortest Shutter Speed 1/16000 Second
-

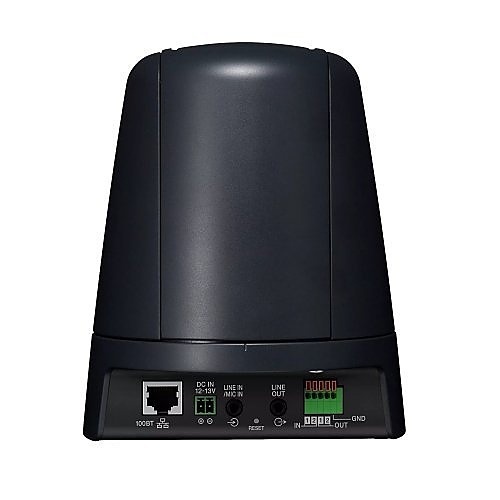

Network (RJ-45) Yes
-
Focal Length 4.7-94 mm Lens Included Yes Maximum Focal Length 97 mm Minimum Aperture f/3.1
-
Remote Management Yes
-
Color Black Height 6.1"
-
Input Voltage 100V AC, 12V DC, 240V AC
-
Diameter 5.2" Mount Type Ceiling Mount
-
Recording Formats Full HD Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Country of Origin TW Features Audio Compression, Auto Gain Control, Auto Image Stabilizer, Day/Night, Face Detection, Motion Detection, Multi-view Stream, Noise Reduction, Panoramic Stream, Password Protection, Privacy Masking, White Balance, Wide Dynamic Range Indoor/Outdoor Indoor
