Product Overview
Ideal for testing IR Frequency, Strength, Voltage and Pinout
- Convenient- hand held IR Signal Analyzer for testing IR Frequency- Strength- Voltage- and Pinout
- Ideal for troubleshooting IR signal deficiencies

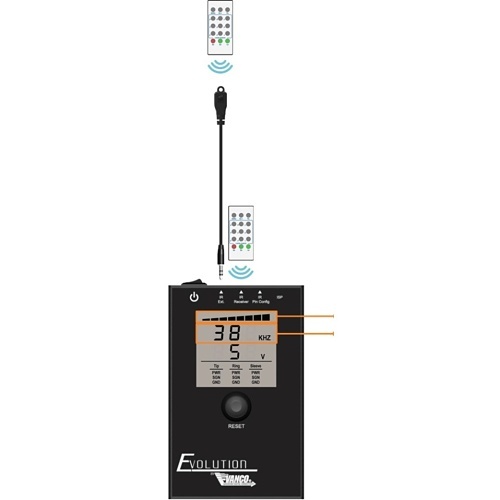

- Point and shoot to test IR Frequency on any remote
- Measures signal strength to identify strong and weak spots throughout an installation area

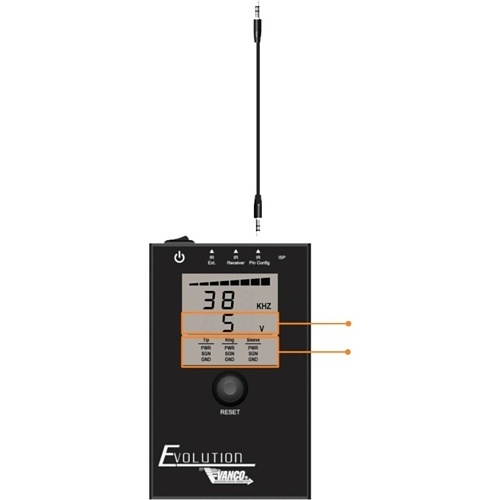

- Pinpoints IR Signal Voltage measurement
- Provides IR-RX Pinout (Power- Ground- Signal) Ideal for mixed IR applications
General Information

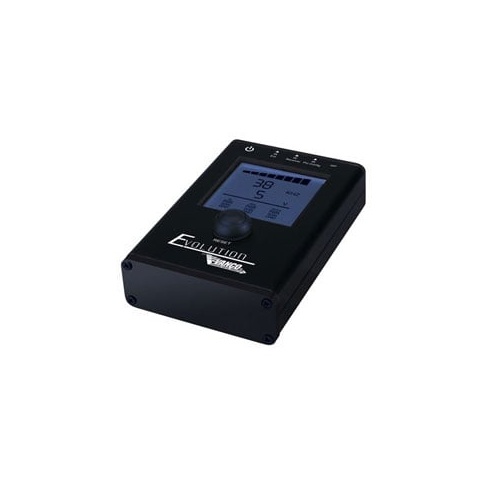

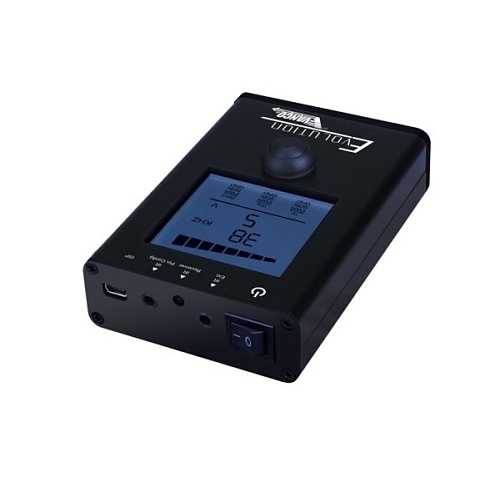

Name : Evolution EVIRTEST IR Signal Analyzer , Evolution
Category : Universal Remote Controls
UPC Code : 741835105835
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : ZX-EVIRTEST
Brand Name : Evolution
Manufacturer : Vanco International, Inc
Manufacturer Part Number : EVIRTEST
Product Name : IR Signal Analyzer
Product Type : IR Signal Testing Device
Technical Information
Device Function : Frequency Testing, IR Pinout Testing, Signal Strength Testing, Voltage Measurement
Interfaces/Ports
Audio Line Out : Yes
Physical Characteristics
Depth : 3.5"
Depth (mm) : 88.9
Height : 0.8"
Height (mm) : 20.32
Width : 3.7"
Width (mm) : 93.98
Miscellaneous
Package Contents : <ul> <li>IR Signal Analyzer</li> <li>IR Receiver</li> <li>3.5mm Stereo Cable</li> <li>Product Manual</li> </ul>
