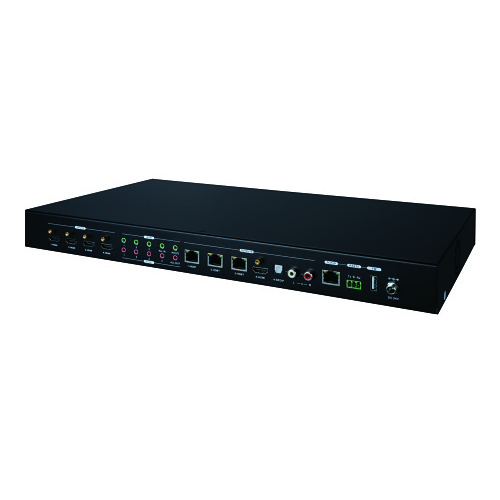

Evolution EVMX4X3 4K HDBaseT 4x3 Matrix with HDMI Output, IR, IP and RS-232
EVMX4X3|ZX-EVMX4X3
Evolution EVMX4X3 4K HDBaseT 4x3 Matrix with HDMI Output, IR, IP and RS-232
EVMX4X3|ZX-EVMX4X3
Key Features
What's Included
- 4K 4×3 HDBaseT Matrix that acco mmodates 3 HDBaseT outputs and 1 HDMI output
- Extends 4K 60Hz 4:4:4, and HDR10 up to 131'/40m over a single Cat6 cable
- Outputs 4K 60Hz 4:4:4, HDR10 and Dolbsy Vision on the HDMI inputs and output
Key Features
What's Included
- 4K 4×3 HDBaseT Matrix that acco mmodates 3 HDBaseT outputs and 1 HDMI output
- Extends 4K 60Hz 4:4:4, and HDR10 up to 131'/40m over a single Cat6 cable
- Outputs 4K 60Hz 4:4:4, HDR10 and Dolbsy Vision on the HDMI inputs and output
Key Features
What's Included
- 4K 4×3 HDBaseT Matrix that acco mmodates 3 HDBaseT outputs and 1 HDMI output
- Extends 4K 60Hz 4:4:4, and HDR10 up to 131'/40m over a single Cat6 cable
- Outputs 4K 60Hz 4:4:4, HDR10 and Dolbsy Vision on the HDMI inputs and output
Evolution by Vanco
Evolution EVMX4X3 4K HDBaseT 4x3 Matrix with HDMI Output, IR, IP and RS-232
EVMX4X3 | ZX-EVMX4X3
Please sign in to view pricing and availability and to add to cart.
Accessories
HDMI Matrix Switches
ADI # ZX-EVMX88PRO
MODEL # EVMX88PRO
EVMX88PRO|ZX-EVMX88PRO
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Features 4K 4×3 HDBaseT Matrix that accommodates 3 HDBaseT outputs and 1 HDMI output Extends4K 60Hz4:4:4, and HDR10 up to 131ft/40m over a single Cat6 cable Outputs4K 60Hz4:4:4, HDR10 and Dolby Vision on the HDMI inputs and output Extends 1080p resolution up to 230ft/70m over a single Cat6 cable PoC receivers sold separate (EVRXHD2 and EVRXDSC) Features POC (Power over Cable) technology – providing power for the receivers resulting in easy installation HDCP 2.2 compliant Digital and analog audio breakouts for the HDMI output Built-in EDID management and advanced HDCP handling Controllable via front panel, IR, RS-232 and third party control systems, as well as a built in GUI via IP connection Features bi-directional IR and RS-232 for source and/or display control Includes EV-IRMST IR integration cable for seamless integration with 3rd Party IR Systems Dimensions: 17.2” W x 1.7” H x 9.3” D
Main Features
- 4K 4×3 HDBaseT Matrix that acco mmodates 3 HDBaseT outputs and 1 HDMI output
- Extends 4K 60Hz 4:4:4, and HDR10 up to 131'/40m over a single Cat6 cable
- Outputs 4K 60Hz 4:4:4, HDR10 and Dolbsy Vision on the HDMI inputs and output
- Extends 1080p resolution up to 230ft/70m over a single Cat6 cable

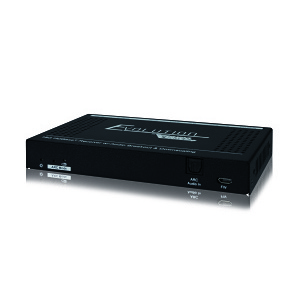

- PoC receivers sold separate (EVRXHD2 and EVRXDSC)
- Features POC (Power over Cable) technology - providing power for the receivers resulting in easy installation
- HDCP 2.2 compliant
- Digital and analog audio breakouts for the HDMI output
- Built-in EDID management and advanced HDCP handling
- Controllable via front panel, IR, RS-232 and third party control systems, as well as a built in GUI via IP connection
General Information
Name: Evolution EVMX4X3 4K HDBaseT 4x3 Matrix with HDMI Output, IR, IP and RS-232
Category: Evolution by Vanco, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Matrix Switches, Pro HDMI Switchers
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number ZX-EVMX4X3 Brand Name Evolution by Vanco Manufacturer Vanco International, Inc Manufacturer Part Number EVMX4X3 Product Line Evolution Product Model EVMX4X3 Product Name 4K HDBaseT 4×3 Matrix with HDMI Output, IR, IP and RS-232 Product Type HDMI Matrix Switches
-
Connectivity Technology Wired Device Supported Display Maximum Operating Distance 230' Media Type Supported Twisted Pair Number of Input Devices Supported 4
-
Maximum Video Resolution 3840 x 2160
-
Number of Connectivity (RJ-45) Ports 4 Number of HDMI Inputs 4 Number of HDMI Outputs 1 Number of USB Ports 1
-
Depth 9.3" Height 1.7" Width 17.2"
-
Mount Type Rack Mount Number of Displays Supported 3
-
Graphics Modes 4K
-
Country of Origin CN Package Contents - 4K HDBaseT 4×3 Matrix with HDMI Output, IR, IP and RS-232
- EV-IRMST IR Integration Cable
