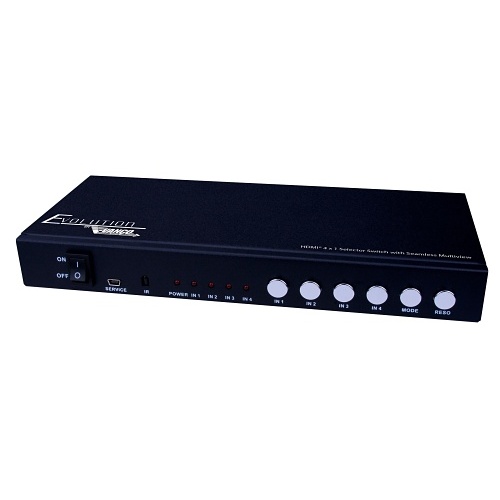

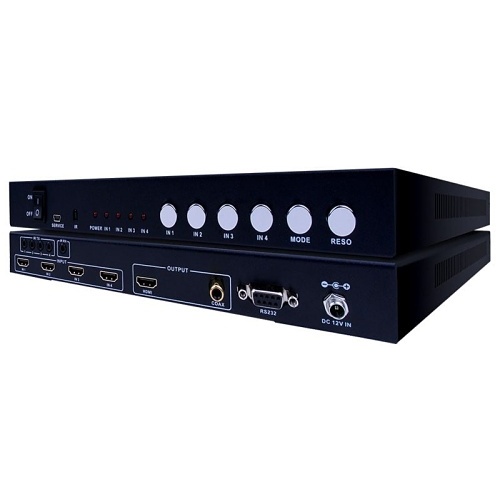

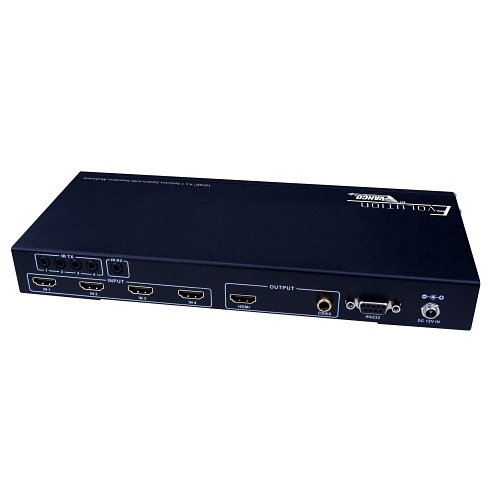

Evolution EVSW1040 HDMI 4X1 Selector Switch with Seamless Switching and Multiview
EVSW1040|ZX-EVSW1040
Evolution EVSW1040 HDMI 4X1 Selector Switch with Seamless Switching and Multiview
EVSW1040|ZX-EVSW1040
Evolution by Vanco
Evolution EVSW1040 HDMI 4X1 Selector Switch with Seamless Switching and Multiview
EVSW1040Â |Â ZX-EVSW1040
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

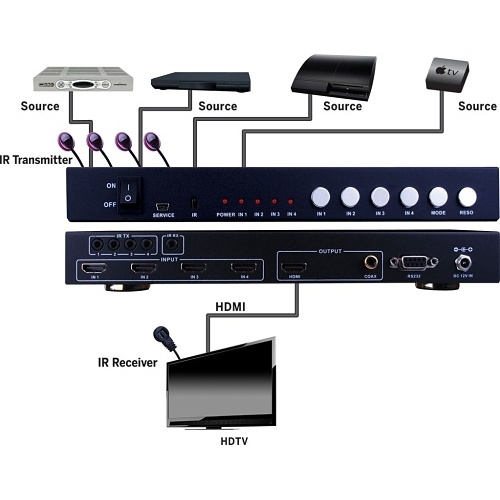

The EVSW1040 is a high performance 4 by 1 HDMI switcher with Quad-View and Picture-in-Picture (PIP) capabilities and seamless switching. As a switcher, it can seamlessly switch the four HDMI inputs freely. It supports four HDMI inputs/sources to be displayed on one screen either equally in Quad-View mode or with a larger main source in PIP mode. The product can be controlled through the front panel button control, IR control, and RS232 control. The product provides an S/PDIF link to output the HDMI source audio at the same time.
Main Features
- Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources
- Quickly and easily connect with the display
- Switch between 4 sources to a single display
- 1920 x 1080 resolution for high-quality video delivery
General Information
Name: Evolution EVSW1040 HDMI 4X1 Selector Switch with Seamless Switching and Multiview
Category: Evolution by Vanco, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Matrix Switches, Pro HDMI Switchers
UPC Code: 741835105378
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number ZX-EVSW1040 Brand Name Evolution by Vanco Manufacturer Vanco International, Inc Manufacturer Part Number EVSW1040 Product Line Evolution Product Model EVSW1040 Product Name Evolution HDMI 4 x 1 Selector Switch with Seamless Switching and Multiview Product Type Audio/Video Switchbox Â
-
Connectivity Technology Cable Device Supported Blu-ray Disc Player, Display, DVD Player, Gaming Console, Set-top Box Number of Input Devices Supported 4 Â
-
Maximum Video Resolution 1920 x 1080 Â
-
HDMI In Yes HDMI Out Yes Number of HDMI Inputs 4 Number of HDMI Outputs 1 Â
-
Depth 4.6" Height 1.3" Weight (Approximate) 1.70 lb Width 9.8" Â
-
Number of Displays Supported 1 Â
-
Graphics Modes Full HD Scan Format 1080p Â
-
Limited Warranty 2 Year Â
-
Package Contents - Evolution HDMI 4 x 1 Selector Switch with Seamless Switching and Multiview
- 4 x Wideband IR Tx Cables
- 1 x Wideband IR Rx Cable
- Remote Control
- 12V/2.5A DC Power Supply
- and more below
