Amplifier 40w 70v W/Mic Input

PulseAudio PAV140 Single Channel Amplifier, 40W

PAV140|ZX-PAV140

PulseAudio PAV140 Single Channel Amplifier, 40W

PAV140|ZX-PAV140

Sign In for Dealer Pricing

Become an ADI Customer
Amplifier 40w 70v W/Mic Input
PulseAudio

PulseAudio PAV140 Single Channel Amplifier, 40W

PAV140 | ZX-PAV140

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

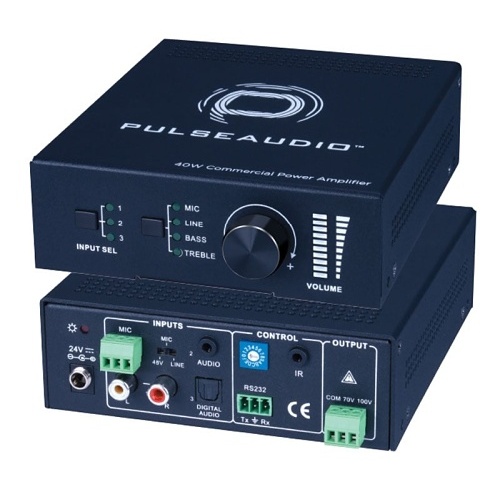

The PulseAudio PAV140 is an amplifier that produces 40 Watts with Class-D power that is able to output 70V or 100V. Features two stereo inputs (3.5mm jack for line in and (2) RCA for L&R), one digital input and one balanced MIC input, with integrated ducking functionality, EQ control, and MIC mixing. The MIC input supports three levels with condenser MIC, dynamic MIC and line level audio input. The single output channel supports up to 40W @8ohms and is able to be controlled manually, as well as with IR and RS232. Can be combined with multiple amplifiers within a system, with the ability of controlling each zone individually. The PAV140 is a great solution for any 70v/100v speaker application.

Main Features

  • Mono audio output at 40W
  • Switchable between 70V and 100V
  • Sixteen ID codes for controlling multiple PAV140 Alifiers in a system
  • 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone, with ducking or mixing function
  • MIC port supports balanced/unbalanced signal, and suppresses external noise effectively

General Information

Name: PulseAudio PAV140 Single Channel Amplifier, 40W
Category: PulseAudio, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code: 741835111621
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources
