Product Overview
ADI PRO CAT5 Riser Cable is UL-certified and features 24AWG with 4 solid bare annealed copper conductor pairs. Our wire is fully tested to exceed industry standards to satisfy the needs of present and future networks in the market. Also available in other colors.
Main Features
- ANSI/TIA-568.2-D STANDARDS/ETL tested to 500MHz

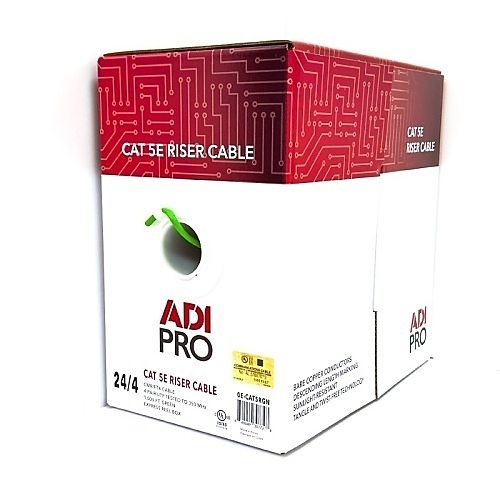

- 1000' Express Box
- 23AWG/4 Pair UTP Tested
- 100% Copper
- UL/cUL ETL
General Information
Name: ADI PRO 0E-CAT5RGN CAT5e Riser Cable, 24/4 Solid BC, U, UTP, CMR/FT4, Sunlight Resistant, 1000' (304.8m) Express Box, Green
Category: ADI PRO, Wire & Cable, Network Cables, Category 5e Network Cables, ADI Exclusive
UPC Code: 840049307728
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number 0E-CAT5RGN Brand Name ADI PRO Country of Origin KR Manufacturer ADI PRO Manufacturer Part Number 0E-CAT5RGN Package Type Express Box Packaged Quantity 1 Product Model 0E-CAT5RGN Product Type Network Cable, Riser Cable
American Wire Gauge 24AWG Cable Rating Riser Cable Type Category 5e Conductor Count 4 Conductor Material Copper Jacket Type TC Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid
Cable Length 1000.00' Color Green Height 13.80" Insulation Material HDPE (High-Density Polyethylene) Jacket Material PVC (Polyvinyl Chloride) Material Copper
Maximum Operating Voltage 300V
Length 1000.00'
Limited Warranty Limited Lifetime
