AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, Stainless Steel
Q9216-SLV
|Z4-01766001
Shop all Axis Communications
AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, Stainless Steel
Q9216-SLV | Z4-01766001
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

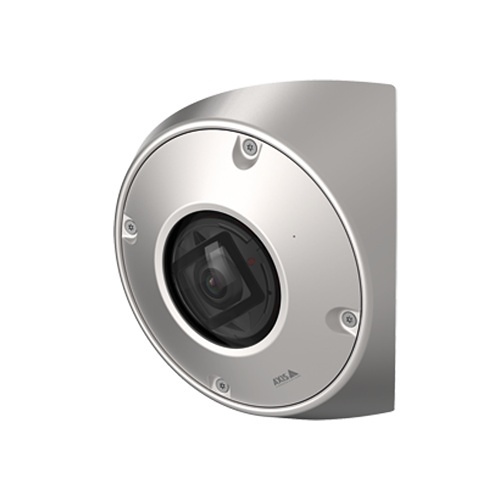

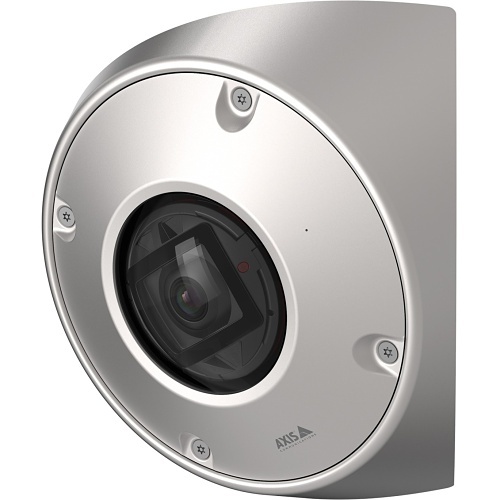

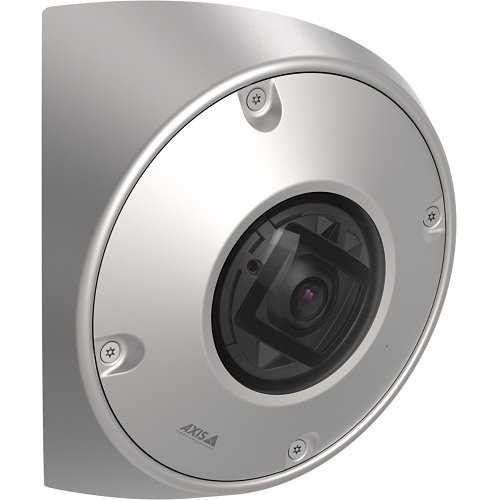

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera specially designed to provide a wide field-of-view and ensure no area is left uncovered. Available in white and elegant stainless-steel, this low power consuming camera is ideal for high-security installations such as in prisons and psychiatric wards.
Main Features
- Anti-ligature, robust (IK11)
- Compact design – easy to install
- Corner camera – no blind spots
- WDR and invisible IR (940 nm)
- Zipstream supporting H.264 and H.265
General Information
Name: AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, Stainless Steel
Category: Axis Communications, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 7331021067493
Country of Origin: Poland. Country of origin is subject to change.
Specifications
ADI Part Number Z4-01766001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 01766-001 Product Line Q Product Model Q9216-SLV Product Name AXIS Q9216-SLV STEEL Product Series Q92 Product Type Fixed dome cameras Supported Network Protocols IPv6 USGv6, NIST SP500-267
Aperture f/2.1 Built-in Microphone Yes Connectivity Technology Wired Effective Camera Resolution 4MP Field of View Horizontal, Vertical Lens Mount Type M12 Lens Type Fixed Maximum Aperture f/2 Maximum Frame Rate 30fps Minimum Focal Length 2.4mm Night Vision Yes Night Vision Type Infrared Video Formats H.264, H.265, MJPEG, MPEG-4
Image Sensor Type CMOS Night Vision Distance 49.21 ft Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP6K9K NDAA Compliant Yes TAA Compliant Yes
Image Sensor Size 1/2.5" Maximum Video Resolution 2304 x 1728
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -4°F (-20°C) Operating Humidity 0.85
Longest Shutter Speed 1/5 Second Minimum Illumination 0.05 lux Shortest Shutter Speed 1/32500 Second
HDMI Yes Network (RJ-45) Yes
Focal Length 2.4mm Lens Included Yes Maximum Focal Length 2.4mm
Memory Card Supported Yes
Remote Management Yes
ADI Part Number Replaces Z4-0709001, Z4-0710001 Model Number Replaces 0709-001, 0710-001
Color Silver Depth 6.9" Durability Vandal Resistant Form Factor Dome Height 5.2" Weight 3.53 lb Width 8.2"
Input Voltage 12V DC Maximum Power Consumption 11W Power over Ethernet (PoE) Yes
Length 6.9" Mount Type Conduit Mount, Corner Mount
Storage Type Memory Card
Maximum Resolution 1280 x 720
Limited Warranty 3-Year
Certifications EN 50130-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 22 Class A, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP69, IEC/EN 62262 IK10+ (50J), ISO 20653 IP6K9K, NEMA 250 Type 4X Impact Protection Rating IK11 Indoor/Outdoor Outdoor Package Contents - Q9216-SLV Network Camera
- Installation Guide
- Windows decoder 1-User License
- AVHS Authentication Key
- AXIS Device Microphone A
- AXIS Connector A 4-p=Pin 2.5 Straight
- and more below
