AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, White
Q9216-SLV|Z4-01767001
Color: White
AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, White
Q9216-SLV|Z4-01767001
Color: White
Key Features
What's Included
- Anti-ligature, robust (IK11)
- Compact design – easy to install
- Corner camera – no blind spots
Key Features
What's Included
- Anti-ligature, robust (IK11)
- Compact design – easy to install
- Corner camera – no blind spots
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Anti-ligature, robust (IK11)
- Compact design – easy to install
- Corner camera – no blind spots
Axis Communications
AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, White
Q9216-SLV | Z4-01767001
Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
ADI # 0E-20LED2
MODEL # 0E-20LED2
0E-20LED2|0E-20LED2
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Network Video Recorders (NVRs)
ADI # VM-0NVR8CH2T
MODEL # VM-0NVR8CH2T
VM-0NVR8CH2T|VM-0NVR8CH2T
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

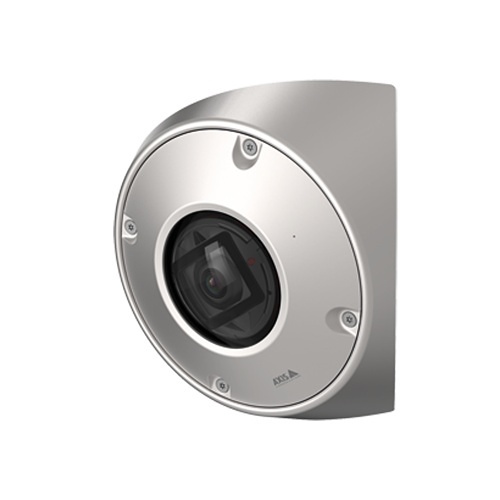

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible IR illumination, it's ideal for covert video surveillance in complete darkness. With an IK10+/IP66 rated casing, it also includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.
- Anti-ligature, robust (IK10+)
- Corner camera - no blind spots
- WDR and invisible IR (940 nm)
- Compact design - easy to install
- Zipstream supporting H.264 and H.265
Main Features
- Anti-ligature, robust (IK11)
- Compact design – easy to install
- Corner camera – no blind spots
- WDR and invisible IR (940 nm)
General Information
Name: AXIS Q9216-SLV 4MP Corner Mounted Impact-Resistant Fixed Dome IR WDR IP Camera, 2.4mm Lens, White
Category: Axis Communications, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 7331021067509
Country of Origin: Poland. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-01767001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 01767-001 Product Line Q Product Model Q9216-SLV Product Name AXIS Q9216-SLV WHITE Product Series Q92 Product Type Fixed dome cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 3.53 lb
-
Aperture f/2.1 Built-in Microphone Yes Connectivity Technology Wired Effective Camera Resolution 4MP Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/2 Maximum Frame Rate 30 fps Minimum Focal Length 2.4mm Night Vision Yes Video Formats H.264, H.265, MJPEG, MPEG-4
-
Image Sensor Type CMOS Night Vision Distance 49.21 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP6K9K NDAA Compliant Yes TAA Compliant Yes
-
Image Sensor Size 1/2.5" Maximum Video Resolution 2304 x 1728
-
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -4°F (-20°C) Operating Humidity 85% Operating Temperature (T-T) -20-50°C
-
Longest Shutter Speed 1/5 Second Minimum Illumination 0.05 lux Shortest Shutter Speed 1/32500 Second
-
Network (RJ-45) Yes
-
Focal Length 2.4mm Lens Included Yes Maximum Focal Length 2.40 mm
-
Memory Card Supported Yes
-
Remote Management Yes
-
ADI Part Number Replaces Z4-0710001 Model Number Replaces 0710-001
-
Color White Depth 6.9" Durability Vandal Resistant Form Factor Dome Height 5.2" Width 8.2"
-
Input Voltage 12V DC Maximum Power Consumption 11W Power over Ethernet (PoE) Yes
-
Mount Type Conduit Mount, Corner Mount
-
Recording Formats HD
-
Maximum Resolution 1280 x 720
-
Limited Warranty 5-Year
-
Certifications EN 50130-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 22 Class A, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP69, IEC/EN 62262 IK10+ (50J), ISO 20653 IP6K9K, NEMA 250 Type 4X Features Built-in Microphone, Day/Night, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, SD Card Local Storage, Shock Detection, Tampering Alarm Impact Protection Rating IK11 Indoor/Outdoor Indoor, Outdoor Package Contents - Q9216-SLV Network Camera
- Installation Guide
- Windows Decoder 1-User License
- AVHS Authentication Key
- AXIS Device Microphone A
- AXIS Connector A 4-Pin 2.5 Straight
- and more below
