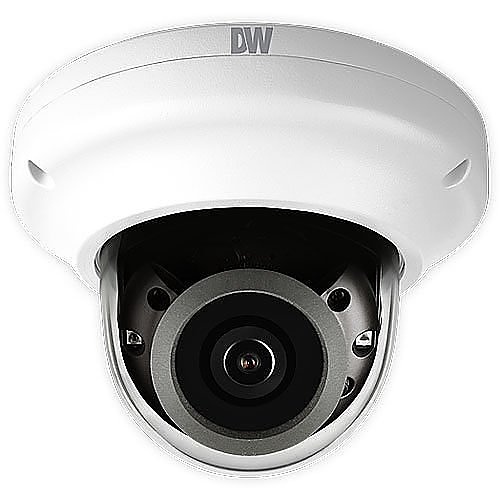

Digital Watchdog DWC-MVC8WIATW MEGApix IVA 4K Low-Profile IR Vandal Dome IP Camera, 2.7-13.5mm Varifocal Lens, White
DWC-MVC8WIATW|6K-MVC8WIATW
Focal Length: 2.7-13.5 mm
Digital Watchdog DWC-MVC8WIATW MEGApix IVA 4K Low-Profile IR Vandal Dome IP Camera, 2.7-13.5mm Varifocal Lens, White
DWC-MVC8WIATW|6K-MVC8WIATW
Focal Length: 2.7-13.5 mm
Key Features
- 4K 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
Key Features
- 4K 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 4K 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
Digital Watchdog
Digital Watchdog DWC-MVC8WIATW MEGApix IVA 4K Low-Profile IR Vandal Dome IP Camera, 2.7-13.5mm Varifocal Lens, White
DWC-MVC8WIATW | 6K-MVC8WIATW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This MEGApix IP camera is your gateway to powerful video analytics features. Provides 4K resolution at real-time 30fps. This camera features Star-Light Plus color in near-total darkness technology for quality video in any lighting condition, simultaneous H.265/H.264/MJPEG codec support and a 2.7-13.5mm vari-focal auto-focus lens with motorized zoom and 5x optical zoom. The IP67-rated, IK-10 impact-resistant vandal housing features CleanView self-cleaning dome treatment.
Main Features
- 4K 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- Vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and focused image any time
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 100' Smart IR with intelligent camera sync for clear B/W images with no need for external light
General Information
Name: Digital Watchdog DWC-MVC8WIATW MEGApix IVA 4K Low-Profile IR Vandal Dome IP Camera, 2.7-13.5mm Varifocal Lens, White
Category: Digital Watchdog, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 812226032112
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
-
ADI Part Number 6K-MVC8WIATW Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DWC-MVC8WIATW Product Line MEGApix Product Model DWC-MVC8WiATW Product Name MEGApix DWC-MVC8WiATW Network Camera Product Series MVC8 Product Type Network Camera Supported Network Protocols IPv4 Weight 1.12 lb
-
American Wire Gauge 18AWG Built-in Microphone Yes Connectivity Technology Wired Effective Camera Resolution 8MP Field of View Horizontal, Vertical Illumination Distance 100' Lens Type P-iris, Varifocal, Zoom Maximum Frame Rate 30fps Minimum Focal Length 3.6mm Motion Detection Yes Night Vision Yes Night Vision Type Infrared Optical Zoom 2.7x Output Voltage 12V DC Programmable Yes Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) Video Formats H.264, MJPEG
-
Audio Encoding G.711 Memory Card Slot Yes
-
Image Sensor Type CMOS Night Vision Distance 70 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP67 NDAA Compliant Yes TAA Compliant Yes
-
Image Sensor Size 1/2.8" Maximum Video Resolution 2560 x 1440
-
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -4°F (-20°C) Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -4-122°F
-
Longest Shutter Speed 1/15 Second Minimum Illumination 0.0 lux (B/W)|0.043 lux (color) Shortest Shutter Speed Off|x10|x2|x3|x5|x6|x7.5
-
Aspect Ratio 0.16874999999999998
-
Network (RJ-45) Yes
-
Focal Length 2.7-13.5 mm Focus Modes Auto, Manual Lens Included Yes Maximum Focal Length 10 mm
-
Network Technology 1000 Base-T Ethernet
-
Remote Management Yes
-
Color White Durability Weather Resistant Form Factor Dome Material Aluminum Die-cast
-
Input Voltage 12V DC
-
Mount Type Ceiling Mount, Gang Box Mount, Junction Box Mount, Wall Mount
-
Recording Formats 4K Storage Type Memory Card
-
Amperage 750mA
-
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
-
Limited Warranty 5-Year
-
Certifications CE, FCC, NDAA Environmental Certification UL Features Audio Compression, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Motion Detection, SD Card Local Storage, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Indoor, Outdoor
