Genesis 22231009 14/2 Stranded Shielded Cable, Riser, CL3R, FT4, 1000' (304.8 m) Reel, Gray
22231009|WG-22231009
Color: Gray
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 14AWG
Genesis 22231009 14/2 Stranded Shielded Cable, Riser, CL3R, FT4, 1000' (304.8 m) Reel, Gray
22231009|WG-22231009
Color: Gray
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 14AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Genesis
Genesis 22231009 14/2 Stranded Shielded Cable, Riser, CL3R, FT4, 1000' (304.8 m) Reel, Gray
22231009 | WG-22231009
Please sign in to view pricing and availability and to add to cart.
Recommended
N42BJ62 | VD-N42BJ62
N42BJ62 | VD-N42BJ62
Sign In for Dealer Pricing
21065509 | WG-21065509
21065509 | WG-21065509
Sign In for Dealer Pricing
21171009 | WG-21171009
21171009 | WG-21171009
Sign In for Dealer Pricing
21215509 | WG-21215509
21215509 | WG-21215509
Sign In for Dealer Pricing
52501101 | WG-52501101
52501101 | WG-52501101
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

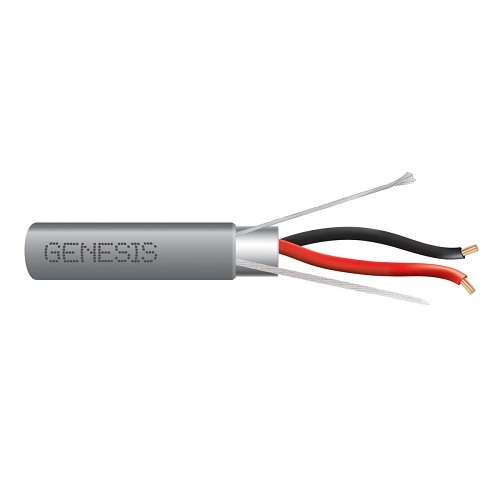

Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 22231009 14/2 Stranded Shielded Cable, Riser, CL3R, FT4, 1000' (304.8 m) Reel, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Riser Shielded Cables
UPC Code: 619172040242
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-22231009 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 22231009 Packaged Quantity 1 Product Model 22231009 Product Name 22231009 - 14 AWG 2C STR Shielded Riser, Gray, 1000 FT. Reel Product Type Access & Security Cable Weight 37.80 lb
-
American Wire Gauge 14AWG Cable Rating Riser Cable Type Multi-conductor, Multi-pair Conductor Count 1 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 14/2 Device Supported Security Device Jacket Material PVC Jacket Type FT4, Riser Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
-
TAA Compliant Yes
-
Cable Length 1000' Color Gray Insulation Material PP Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
