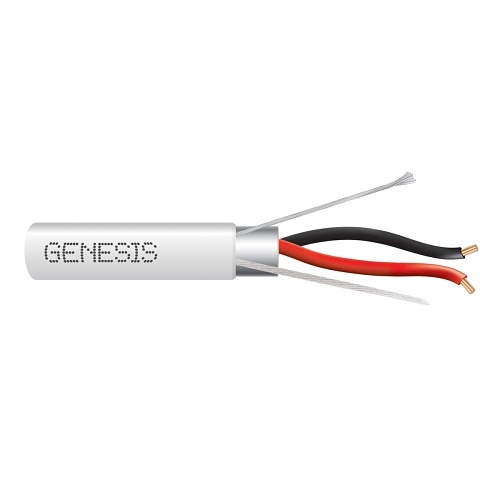

Genesis 32145512 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural
32145512|WG-32145512
Color: Natural
Cable Length: 500'

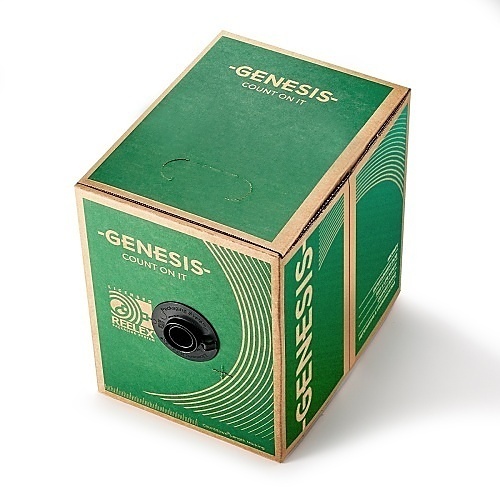

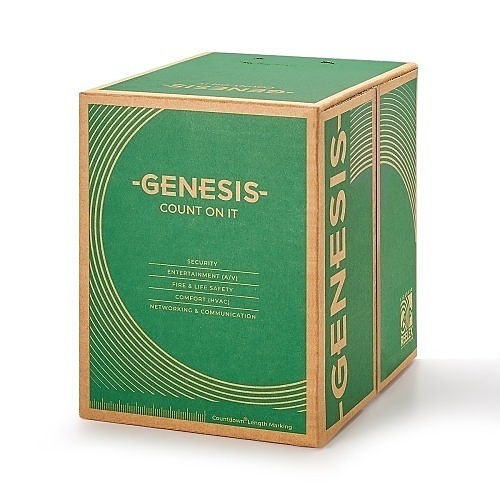

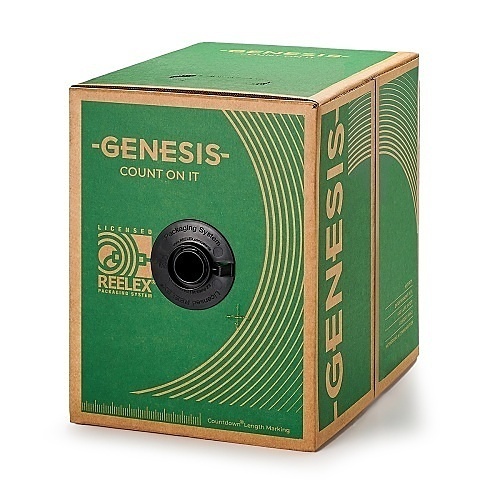

Package Type: Pull Box
Number of Conductors: 2
American Wire Gauge: 18AWG
Genesis 32145512 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural
32145512|WG-32145512
Color: Natural
Cable Length: 500'
Package Type: Pull Box
Number of Conductors: 2
American Wire Gauge: 18AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors

Genesis
Genesis 32145512 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural
32145512 | WG-32145512
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 32145512 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Shielded Cables
UPC Code: 619172015387
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-32145512 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 32145512 Packaged Quantity 1 Product Model 32145512 Product Name 32145512 Control Cable Product Type Access & Security Cable Weight 9.60 lb
-
American Wire Gauge 18AWG Cable Rating Plenum Cable Type Multi-conductor, Multi-pair Conductor Count 1 Conductor Material Bare Copper Core/Cladding Diameter 18/2 Device Supported Burglar Alarm, Intercom, Phone, Speaker Jacket Material LS PVC Jacket Type FT6, Plenum Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
-
TAA Compliant Yes
-
Cable Length 500' Color Natural Insulation Material LS-PVC Material Bare Copper Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
