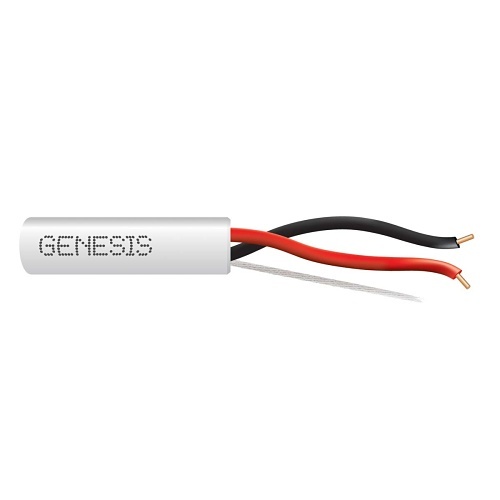

Genesis 43131001 14/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, White
43131001|WG-43131001
Color: White
Cable Length: 1000'

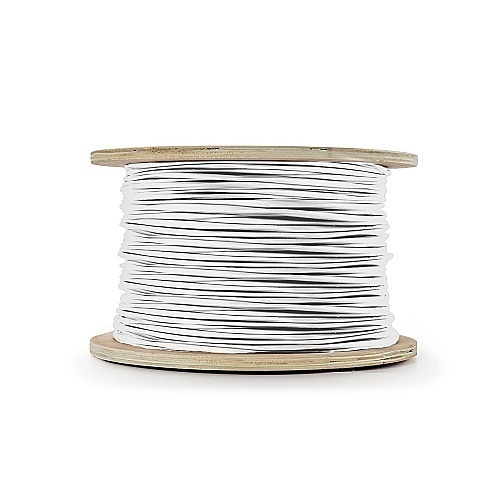

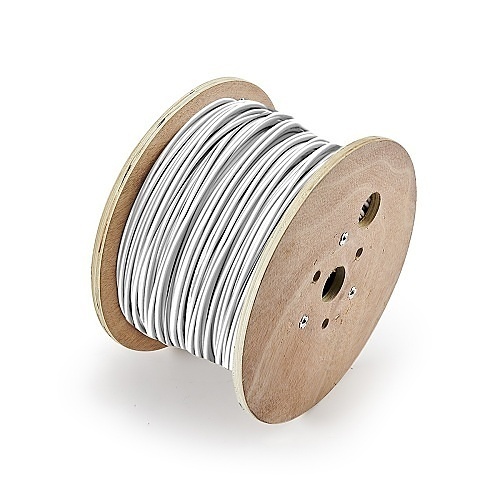

Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 14AWG
Genesis 43131001 14/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, White
43131001|WG-43131001
Color: White
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 14AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
.jpg)
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Genesis
Genesis 43131001 14/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, White
43131001 | WG-43131001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Fire Alarm Cables ensure uninterrupted fire protection. Built to exceed the demands of rigorous fire safety codes and regulations, UL listed, and Made in the USA.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 43131001 14/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Reel, White
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Non-Plenum Unshielded Cables
UPC Code: 781410822726
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-43131001 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 43131001 Packaged Quantity 1 Product Model 43131001 Product Name 43131001 Control Cable Product Type Fire Alarm Cable Weight 32 lb
-
American Wire Gauge 14AWG Cable Rating Riser Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 14/2 Device Supported Fire Alarm Jacket Material PVC Jacket Type Plenum Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid
-
TAA Compliant Yes
-
Cable Length 1000' Color White Insulation Material PP Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
