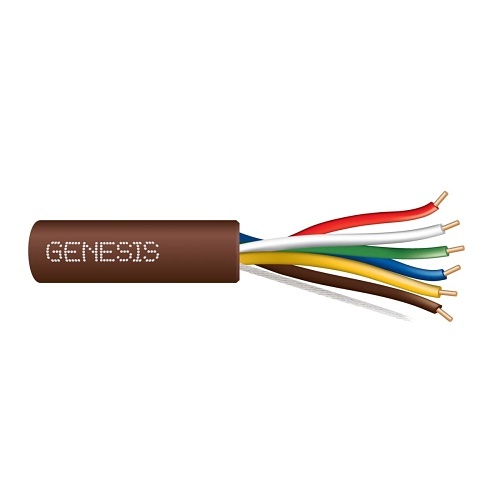

Genesis 47140907 18/6 Solid Unshielded Thermostat Cable, General Purpose, CL2, 250' (76.2 m) Speed Bag, Brown
47140907|WG-47140907
Color: Brown
Cable Length: 250'
Packaged Quantity: 1
Package Type: Speed Bag
Number of Conductors: 6
American Wire Gauge: 18AWG
Genesis 47140907 18/6 Solid Unshielded Thermostat Cable, General Purpose, CL2, 250' (76.2 m) Speed Bag, Brown
47140907|WG-47140907
Color: Brown
Cable Length: 250'
Packaged Quantity: 1
Package Type: Speed Bag
Number of Conductors: 6
American Wire Gauge: 18AWG
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
Genesis
Genesis 47140907 18/6 Solid Unshielded Thermostat Cable, General Purpose, CL2, 250' (76.2 m) Speed Bag, Brown
47140907 | WG-47140907
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Thermostat Cables guarantee reliable signal transmission between thermostats and heating/cooling systems, keeping today's indoor environments comfortable and energy efficient.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Sequential length marking for easy tracking of usage
- Rated for 150 Volts
- Rated for -20 °C to 60 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 47140907 18/6 Solid Unshielded Thermostat Cable, General Purpose, CL2, 250' (76.2 m) Speed Bag, Brown
Category: Genesis, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 619172074018
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-47140907 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 47140907 Packaged Quantity 1 Product Model 47140907 Product Name Control Cable Product Type Thermostat Cable
-
American Wire Gauge 18AWG Cable Rating General Purpose Cable Type Multi-conductor, Multi-pair Conductor Count 1 Conductor Material Bare Copper Device Supported Thermostat Jacket Material PVC Jacket Type General Purpose Number of Conductors 6 Number of Pairs 1 Shielding Yes Solid or Stranded Solid
-
TAA Compliant Yes
-
Cable Length 250' Color Brown Insulation Material PP Material Bare Copper Package Type Speed Bag
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Sunlight Resistant Indoor/Outdoor Indoor
