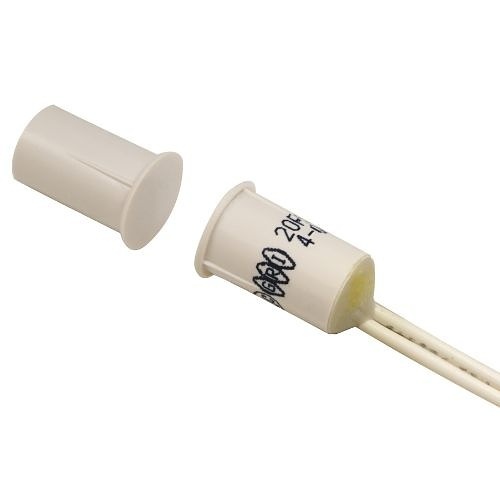

GRI 20RS-12XWG-W 20RS Series 3/8" Short Press Fit Recessed Switch Set, 1" Extra Wide Gap, 10W, 200VDC, 0.50 Amp, Closed, N/O, A, White
GRI 20RS-12XWG-W 20RS Series 3/8" Short Press Fit Recessed Switch Set, 1" Extra Wide Gap, 10W, 200VDC, 0.50 Amp, Closed, N/O, A, White
GRI 20RS-12XWG-W 20RS Series 3/8" Short Press Fit Recessed Switch Set, 1" Extra Wide Gap, 10W, 200VDC, 0.50 Amp, Closed, N/O, A, White
20RS-12XWG-W | GI-20RS12XWW
Please sign in to view pricing and availability and to add to cart.
Product Overview
The G.R.I. recessed "shortie" switch set is designed for applications where a 3/8" press to fit set is needed but space limitations will not allow for a full length set to be installed. With the 5/8" 20RS-12, or the .930" 20RS-T, the installer is able to protect openings that otherwise would have to be secured with more visible surface mount configurations. Available in regular and extra wide gaps, the 20RS series provides an easy answer to the difficult, high dollar window problems every installer encounters.
INSTALLATION APPLICATIONS:
The G.R.I. recessed “shortie” switch set is designed for applications where a 3/8” press to fit set is needed, but space limitations will not allow for a full length set to be installed. Just 5/8” long, the installer is able to protect openings with the 20RS-12 that otherwise would have to be secured with more visible surface mount configurations. Available in regular and extra wide gaps, the 20RS series provides an easy answer to the difficult, high dollar window problems every installer encounters.
Main Features
- Lifetime Warranty
- Colors:White, Brown, Gray
- UL and ULC Approved
- Available in Open Loop, Closed Loop and SPDT
- 3/8" Diameter, Press To Fit
- Standard Lead Length 12" or Terminal Block
- Longer Leads, Zip Cord or Jacketed Cable on Request
- Ideal for Thin Framed Doors & Windows
- Built-in Resistors & Diodes Available on Request
- Switches or Magnets Available Separately
General Information
Specifications
-
ADI Part Number GI-20RS12XWW Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 20RS-12XWG-W Product Model 20RS-12XWG-W Product Name 20RS-12XWG-W Magnetic Contact Product Series 20RS Product Type Magnetic Contact
-
Connectivity Technology Wired Contact Configuration N.O. Contact Form Form A Contact Resistance 150000 Micro Ohm Contact Resistance (Ohm) 0.15 Lead Length 0.63" Lead Length (mm) 15.875 Mounting Type Recessed Mount Recommended Use Door, Window Standard Gap 1" Standard Gap (mm) 25.4
-
Color White Color Family White Diameter (mm) 9.525 Product Color White Product Material Steel
-
Power Source DC
-
Contact Type Closed Loop Diameter 0.4" Installation Type Residential
-
Limited Warranty Lifetime
-
Additional Information - Press To Fit
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
- Standard Gap 3/4"+
Certifications & Standards - UL
- ULC
Features End of Line (EOL) Resistor
