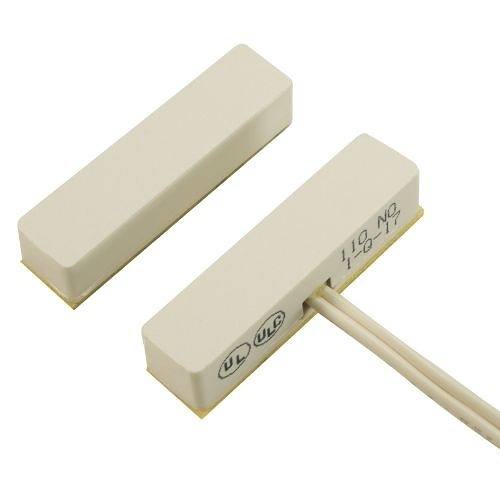

GRI 110-12WG Miniature Surface Mount Switch Set, Wide Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, and 3M Adhesive Tape, White
110-12WG
|GI-11012WGW
GRI 110-12WG Miniature Surface Mount Switch Set, Wide Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, and 3M Adhesive Tape, White
110-12WG | GI-11012WGW
Please sign in to view pricing, availability, and to add to cart.
Product Overview
The G.R.I. 100 style switch is one of our most popular miniature surface mount switches. Available in both flanged: 100-12; and without flanges: 110-12; this low profile series is perfect for residential and commercial use where a larger configuration is not appropriate. Available in regular and wide gap, the set incorporates into most decor requirements without being noticeable. The 100-12 comes with mounting screws. Both the 100 and the 110 are furnished with 3M adhesive tape for proper mounting on aluminum, wood or vinyl. Spacers, switch only, magnet only and additional 3M adhesive tape are also available separately. Order P/N 100-TC if molded covers are desired.
Main Features
- Lifetime Warranty
- UL and ULC approved
- Available in closed loop, open loop and SPDT
- Standard gap up to 1"
- Wide gap up to 1 1/4"
- Longer Leads, zip cord or jacketed cable upon request
- Built-in E.O.L. resistors and diodes upon request
- Switches or magnets available separately
General Information
Specifications
ADI Part Number GI-11012WGW Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 110-12WG-W Product Model 110-12WG Product Name 110-12WG Magnetic Contact Product Series 110 Product Type Magnetic Contact
Connectivity Technology Wired Standard Gap 1.25"
ADI Part Number Replaces SR-1035WN Model Number Replaces 1035W-N
Color White
Power Source DC
Contact Type Closed Loop Installation Type Commercial, Residential Mount Type Surface Mount
Limited Warranty Lifetime Warranty
Additional Information - Plated contacts resist sticking or freezing
- MM-110 rare earth magnet
- Hermetically sealed
- Self stick,wide gap
- Closed loop
Country of Origin US Features Closed loop, Hermetically sealed, MM-110 rare earth magnet, Plated contacts resist sticking or freezing, Self stick,wide gap Package Contents - 110-12WG Magnetic Contact
- Mounting Hardware
- Covers
