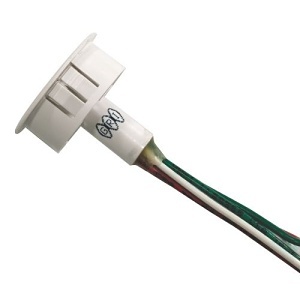

GRI 199-12WG 1" Steel Door Recessed Switch Set, Wide Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, Gray
199-12WG
|GI-19912WGG
GRI 199-12WG 1" Steel Door Recessed Switch Set, Wide Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, Gray
199-12WG | GI-19912WGG
Please sign in to view pricing, availability, and to add to cart.
Product Overview
The GRI 180 Series is the industry standard 3/4" diameter recessed steel door switch set with 12" leads. The 184 Series is a 1" diameter switch set.
The innovative GRI 8080-T Series is a 3/4" diameter recessed switch set designed for residential, commercial and industrial steel doors and frames. The shorter length and the introduction of PC board type terminals makes the installation of the set quick and simple with no soldering, B connectors or tape to catch during installation or removal, reducing the cost of installation and creating greater profitability.
Main Features
- Lifetime Warranty
- Colors:White, Brown, Grey or Black
- UL and ULC Approved
- 180-12 & 184-12 UL 10C Fire Rated
- Available in Closed Loop, Open Loop and SPDT
- 3/4" and 1" Diameter Mounting
- Standard 12" Leads or Terminals
- Self-Locking
- Solid, One Piece Design
- 7/8" Diameter also Available - Call Factory
General Information
Specifications
ADI Part Number GI-19912WGG Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 199-12WG-G Product Model 199-12WG-G Product Name 199-12WG-G Magnetic Contact Product Type Magnetic Contact
Application/Usage Door Connectivity Technology Wired Contact Form Form C Material Steel Standard Gap 0.75"
Color Gray
Power Source DC
Contact Type DPDT Diameter 1" Installation Type Commercial Length 12" Mount Type Recessed Mount
Limited Warranty Lifetime Warranty
Additional Information - Switches or Magnets are Available Separately
- Standard 1/2"+ Gap on Steel
- Wide Gap 1"+ Gap on Steel
- Supervisory Loops Available
Country of Origin US Features End of Line (EOL) Resistor, Self-lock Mounting
