GRI 20RS-T-BL 3/8" Short Press Fit Recessed Switch Set, 0.93" Length, 1/2" Standard Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, A, Black
20RS-T-BL
|GI-20RSTBL
Shop all George Risk Industries
GRI 20RS-T-BL 3/8" Short Press Fit Recessed Switch Set, 0.93" Length, 1/2" Standard Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, A, Black
20RS-T-BL | GI-20RSTBL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

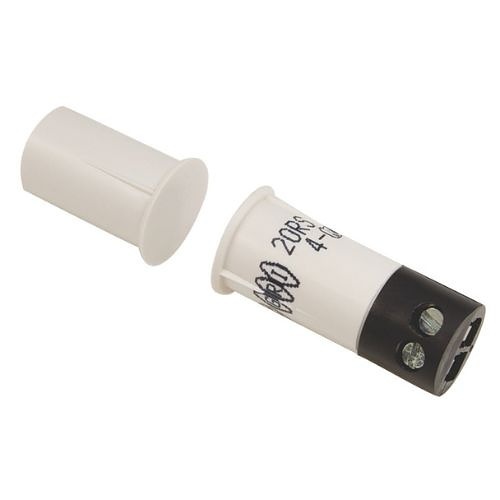

The G.R.I. recessed "shortie" switch set is designed for applications where a 3/8" press to fit set is needed but space limitations will not allow for a full length set to be installed. With the 5/8" 20RS-12, or the .930" 20RS-T, the installer is able to protect openings that otherwise would have to be secured with more visible surface mount configurations. Available in regular and extra wide gaps, the 20RS series provides an easy answer to the difficult, high dollar window problems every installer encounters.
- Lifetime Warranty
- Colors: White, Brown, Gray
- UL and ULC Approved
- Available in Open Loop, Closed Loop and SPDT
- 3/8" Diameter, Press To Fit
- Standard Lead Length 12" or Terminal Block
- Longer Leads, Zip Cord or Jacketed Cable on Request
- Ideal for Thin Framed Doors & Windows
- Built-in Resistors & Diodes Available on Request
- Switches or Magnets Available Separately
- Standard Gap 3/4"+
- Extra Wide Gap 1"+
Main Features
- Available in Open Loop, Closed Loop and SPDT
- Switches or Magnets Available Separately
- Ideal for Thin Framed Doors; Windows
General Information
Name: GRI 20RS-T-BL 3/8" Short Press Fit Recessed Switch Set, 0.93" Length, 1/2" Standard Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, A, Black
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625072965
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-20RSTBL Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 20RS-T-BL Product Model 20RS-T-BL Product Name 20RS-T-BL Magnetic Contact Product Series 20RS Product Type Magnetic Contact
Application/Usage Door, Window Connectivity Technology Wired Contact Form Form A Standard Gap 0.5"
Color Black
Power Source DC
Contact Type N.O. Diameter 0.4" Installation Type Residential Length 0.9" Mount Type Recessed Mount
Limited Warranty Lifetime Warranty
Additional Information - Press To Fit
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
- Standard Gap 3/4"+
Country of Origin US Features End of Line (EOL) Resistor
