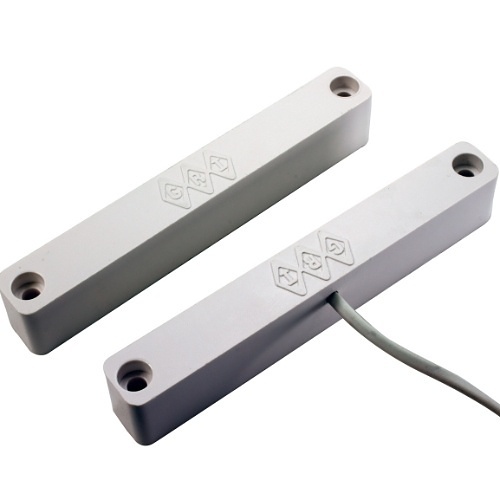

GRI 413P-W Industrial Surface Mount Switch Set, Standard Gap, DPDT, White, Standard Terminals, 36" Conductor Vinyl Jacketed Cable
GRI 413P-W Industrial Surface Mount Switch Set, Standard Gap, DPDT, White, Standard Terminals, 36" Conductor Vinyl Jacketed Cable
GRI 413P-W Industrial Surface Mount Switch Set, Standard Gap, DPDT, White, Standard Terminals, 36" Conductor Vinyl Jacketed Cable
413P-WÂ |Â GI-413PW
Please sign in to view pricing and availability and to add to cart.
Product Overview
The GRI series of commercial and industrial switch sets offers the installer two choices. The 400 Series incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations. The 410 Series has the standard terminals located on the top of the switch. Both options give the installer a regular gap of 1 1/2" , while the wide gap version is up to 3 1/4" , which covers the various types of steel door and frame conditions found at every commercial and industrial site. Spacers and mounting hardware are included with the set. The 410P version offers 3 feet of 2 conductor cable. Switches, magnets and mounting brackets are also available separately.
INSTALLATION APPLICATIONS:
The G.R.I. series of commercial and industrial switch sets offers the installer two choices: The 400 series incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations. The 410 series has the standard terminals located on the side of the switch. Both options give the installer a regular gap of 1 1/2" while the wide gap version is 3", which cover the various types of steel door and frame conditions found at every commercial and industrial site. Spacers and mounting hardware are included with the set. The 410P version offers two feet of vinyl jacketed 2 conductor cable. A mounting bracket kit, PN #8299-G is also available. The kit includes a S412P-G w/M-402-G, S-200 & 4175 brackets and mounting hardware.
Main Features
- Lifetime Warranty
- UL and ULC approved
- UL 10C Fire Rates
- Standard gap up to 1 1/2"
- Wide gap up to 3"
- 36" 2 conductor jacketed leads (410P)
- Longer Lead lengths available on request
- Concealed Terminals
General Information
Specifications
-
ADI Part Number GI-413PW Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 413P-W Product Model 413P-W Product Name 413P-W Magnetic Contact Product Series 410 Product Type Magnetic Contact Â
-
Connectivity Technology Wired Contact Configuration DPDT Contact Form Form C Contact Resistance 140000 Micro Ohm Contact Resistance (Ohm) 0.14 Lead Length 36" Lead Length (mm) 914.4 Mounting Type Surface Mount Recommended Use Door Standard Gap 1.5" Standard Gap (mm) 38.1 Â
-
Application/Usage Commercial, Industrial Color White Color Family White Product Color White Product Material Steel Â
-
Power Source DC Â
-
Installation Type Hybrid Â
-
Limited Warranty Lifetime Â
-
Additional Information - Screw Mount
- Spacer and mounting screws included
- Supervisory loops or dummy terminals on request Private labeling on request
- Switches or magnets are available separately
Features End of Line (EOL) Resistor Package Contents - 413P-W Magnetic Contact
- Mounting Hardware
- Spacers
