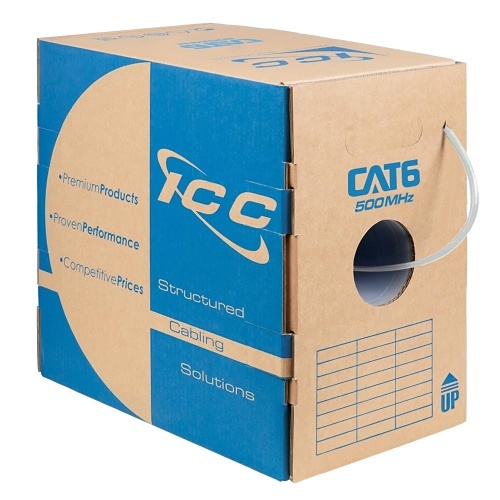

ICC ICCABR6VWH CAT6 CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 500 MHz, UL Certified, 1000' Reelex Pull Box, White
ICCABR6VWH
|H2-CABR6VWH
Shop all ICC
ICC ICCABR6VWH CAT6 CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 500 MHz, UL Certified, 1000' Reelex Pull Box, White
ICCABR6VWH | H2-CABR6VWH
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
CAT6 CABLE: ICC's CAT6 UTP unshielded riser cable provides dependable transmission performance, accommodating 1Gb (Gigabit) Ethernet with a 500MHz bandwidth. This cable not only meets but surpasses TIA Alien Crosstalk requirements, holding ETL Verification to the TIA 568.2-D standard for dependable support of high-speed Ethernet applications. With its riser-rated design and an outer diameter of 0.213 inches, it adheres to safety regulations for vertical installations, making it an ideal choice for a variety of settings, including offices and schools. This cable aligns with the TIA-568-C.2 standard, guaranteeing reliable network connectivity while simplifying installation in riser spaces.
Main Features
- CAT6 CMR Riser 23AWG Solid Copper
- Supports up to 100W PoE++
- 500 MHz Frequency Support
- UL and ETL Certified
- Tangle-Free REELEX Pull Box
- NEC Section 800.179 Compliant
- TAA and Section 889 Certified
- Indoor Use with CMR Riser-rated PVC
- Compatible with Fast and Gigabit Ethernet
General Information
Name: ICC ICCABR6VWH CAT6 CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 500 MHz, UL Certified, 1000' Reelex Pull Box, White
Category: ICC, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code: 633758038591
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number H2-CABR6VWH Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABR6VWH Product Name Cat.6 UTP Network Cable Product Type Network Cable
American Wire Gauge 23AWG Cable Rating Riser Cable Type Category 6 Conductor Count 4 Device Supported Network Device Jacket Material PVC Jacket Type Riser Material PVC Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid
Connector Type RJ-45
Data Transfer Rate 1 Gbit/s
Cable Length 1000' Color White Insulation Material FEP Package Type Pull Box
Limited Warranty 3-Year
Certifications & Standards ETL, RoHS, TIA, UL Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Features Attenuation to Crosstalk Ratio (ACR), Minimized Near-End Crosstalk (NEXT), Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT)
