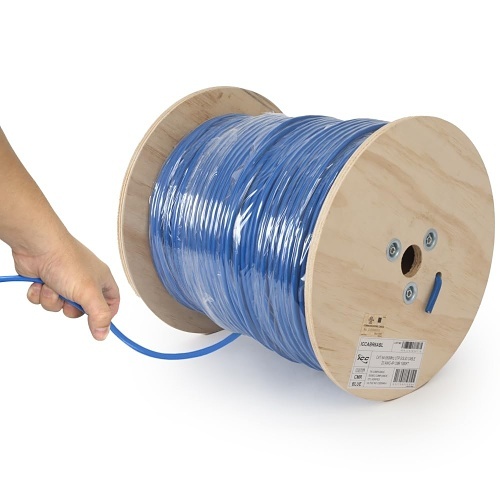

ICC ICCABP6ABL 650MHz CAT6A Bulk Cable with 23 AWG UTP Solid Wires, CMR Jacket, 1000', Blue
ICC ICCABP6ABL 650MHz CAT6A Bulk Cable with 23 AWG UTP Solid Wires, CMR Jacket, 1000', Blue
ICC ICCABP6ABL 650MHz CAT6A Bulk Cable with 23 AWG UTP Solid Wires, CMR Jacket, 1000', Blue
ICCABP6ABLÂ |Â H2-CABR6ABL
Please sign in to view pricing and availability and to add to cart.
Product Overview
Overview
ICC CAT 6A 10Gig UTP cable provides transmission performance beyond 650MHz and Alien Crosstalk requirements exceeding the industry standards and ETL Verified to TIA-568-C.2 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with unique spline design and non-concentric to minimize AXT from neighboring cables. This cabling provides support for high bandwidth applications such as data centers and other data intensive or backbone requirements. This cable qualifies installations for the ICC Lifetime Certified Site Cabling System Limited Warranty when installed by ICC Certified installers (conditions app)
Feature
INDUSTRY STANDARDS
? ETL Verified to TIA-568-C.2
? UL Type CMR for non-plenum
? UL Type CMP for plenum
? FT4
? UL 444
APPLICATIONS
? 10 Base-T
? 100Base-T (IEEE 802.3u)
? 1000 Base-T
? High Definition Video
? Digital Broadcast Video/IP Video/VoIP
? ISDN/ADSL
? 622Mbps ATM
? Conductor: Solid Bare Copper
? Insulation: FEP
? Jacket: Flame Retardant PVC
? Cable spine separator X
? Component: 4 twisted pair
? Outer Dia.(in): 0.34""
? Sequential footage marking for easy usage tracking.
? Packaged on a reel (Size: 15.75""W X 13.00H
? Weight: 51.8 LBS
? Temperature Rating (°F)
? Installation temperature: 32 to 140 Fahrenheit (°F)
? Operating temperature: -4 to 167 Fahrenheit (°F)
Main Features
- Experience a simplerWay to connect devices with the entire business network
- Features Category 6a cable type to better acco mmodate your precise requirements with maximum productivity
- Durable material offers flame retardancy
- Network Device device supported for your convenience and better usability
General Information
Specifications
-
ADI Part Number H2-CABR6ABL Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABR6ABL Product Model ICCABP6ABL Product Name Cat.6a UTP Cable Product Type Network Cable Weight (Approximate) (g) 24493.988 Â
-
American Wire Gauge 23AWG Cable Rating Riser Cable Type Category 6a Conductor Count 4 Device Supported Network Device Jacket Material PVC Number of Conductors 8 Number of Pairs 4 Shielding No Â
-
Cable Length 1000' Cable Length (mm) 304800 Color Blue Insulation Material Fluoropolymer Material PVC Weight (Approximate) 54 lb Â
-
Limited Warranty 3 Year Â
-
Environmental Certification RoHS Environmentally Friendly Yes Features Flame Retardant Â
