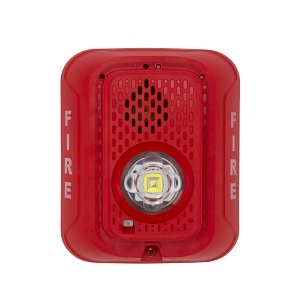

System Sensor Chime Strobe, Wall, Red

System Sensor CHSRL L-Series Selectable Output Chime Strobe, Wall Mount, Red

CHSRL|BK-CHSRL
Color: Red
Mount Type: Wall Mount

System Sensor CHSRL L-Series Selectable Output Chime Strobe, Wall Mount, Red

CHSRL|BK-CHSRL
Color: Red
Mount Type: Wall Mount
Key Features
  • Updated modern aesthetics
  • Plug-in design with minimal intrusion into the back box
  • Mounting plate shorting spring feature checksWiring continuity before device installation
Key Features
  • Updated modern aesthetics
  • Plug-in design with minimal intrusion into the back box
  • Mounting plate shorting spring feature checksWiring continuity before device installation

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Updated modern aesthetics
  • Plug-in design with minimal intrusion into the back box
  • Mounting plate shorting spring feature checksWiring continuity before device installation
System Sensor

System Sensor CHSRL L-Series Selectable Output Chime Strobe, Wall Mount, Red

CHSRL | BK-CHSRL

Please sign in to view pricing and availability and to add to cart.

Recommended

DW-VG41610T16P | 6K-G41610T16
DWC-MBTJUNCW | 6K-MBTJUNCW
SPSCRLED | BK-SPSCRLED

Accessories

Overview
Specifications
Documents

Product Overview

The System Sensor L-Series product line of wall and ceilingmount chimes and chime strobes include a variety of features that increase their application versatility while simplifying the installation. With white and red plastic housings, System Sensor L-Series can meet virtually any application requirement.

Selectable-output chimes and chime/strobes are private mode notification appliances used to alert trained personnel to investigate possible emergency situations and to take appropriate action. Security guard and nurse workstations are ideal locations for chime products.

All devices feature plug-in design with minimal intrusion into the back box, making the installation fast and foolproof while virtually eliminating costly and time-consuming ground faults.

Installers can easily adapt devices to a wide range of application requirements using field-selectable candela settings, automatic selection of 12-or-24 volt operation, and a rotary switch for chime tones and two volume selections.

Main Features

  • Updated modern aesthetics
  • Plug-in design with minimal intrusion into the back box
  • Mounting plate shorting spring feature checksWiring continuity before device installation
  • Captive mounting screw
  • Tamper-resistant construction
  • Field-selectable candela settings: - Wall: 15, 30, 75, 95, 110, 135, 185 - Ceiling: 15, 30, 75, 95, 115, 150, 177
  • Automatic selection of 12- or 24-volt operation at 15 and 30 candela
  • Rotary switch for tone and volume selections
  • Five selectable tones with high and low volume settings
  • Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices

General Information

Name: System Sensor CHSRL L-Series Selectable Output Chime Strobe, Wall Mount, Red
Category: System Sensor, Fire, Fire Notification Appliances, Chime Strobes, ADI Pro Rewards
UPC Code: 783863047640
Country of Origin: Mexico. Country of origin is subject to change.
