Eaton Tripp Lite SRWALLBRKT6U SmartRack Vertical Wall Mount Rack Bracket, 200lb (90.7kg), 2-Post, 6U
SRWALLBRKT6U|TC-SRWALLBR
Height: 11.2"
Eaton Tripp Lite SRWALLBRKT6U SmartRack Vertical Wall Mount Rack Bracket, 200lb (90.7kg), 2-Post, 6U
SRWALLBRKT6U|TC-SRWALLBR
Height: 11.2"
Key Features
What's Included
- 6U vertical wall-mount bracket for space-saving installation
- Supports up to 200 lb (90.7 kgs) load capacity
- Cold-rolled steel with black powder-coated finish
Key Features
What's Included
- 6U vertical wall-mount bracket for space-saving installation
- Supports up to 200 lb (90.7 kgs) load capacity
- Cold-rolled steel with black powder-coated finish
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- 6U vertical wall-mount bracket for space-saving installation
- Supports up to 200 lb (90.7 kgs) load capacity
- Cold-rolled steel with black powder-coated finish
Eaton Tripp Lite
Eaton Tripp Lite SRWALLBRKT6U SmartRack Vertical Wall Mount Rack Bracket, 200lb (90.7kg), 2-Post, 6U
SRWALLBRKT6U | TC-SRWALLBR
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

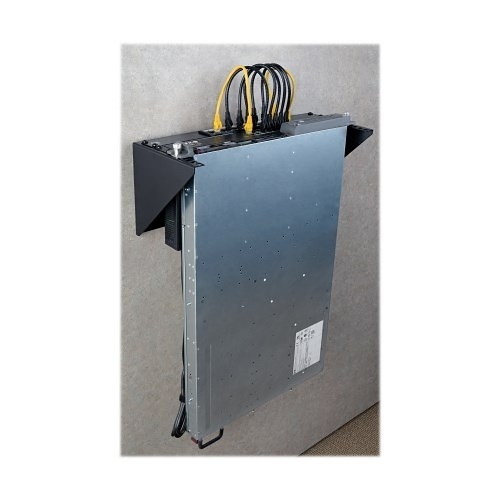

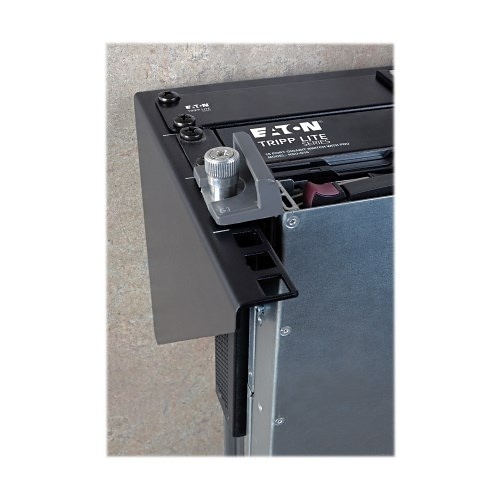

The SRWALLBRKT6U SmartRack 6U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19" server rack. Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 6U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16" part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access. Use the included hardware to attach your 6U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 200 lb (90.7kg). Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT6U is compatible with most EIA-standard 19" two-post rack equipment.
Main Features
- 6U vertical wall-mount bracket for space-saving installation
- Supports up to 200 lb (90.7 kgs) load capacity
- Cold-rolled steel with black powder-coated finish
- Ships fully assembled for quick and easy installation
- Compatible with EIA-standard 19 in. 2-Post rack equipment
- Mounts horizontally under desks or workbenches
- Open access design for easy equipment and cabling management

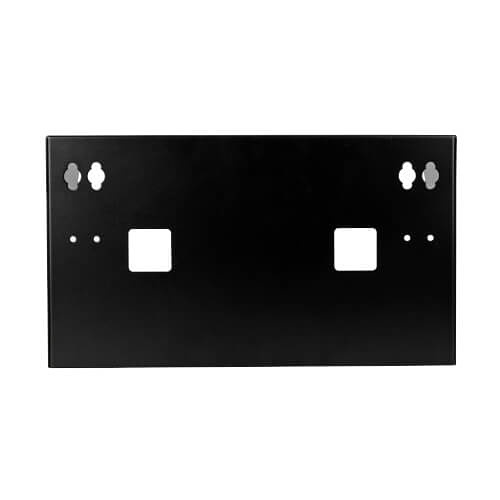

- Standard 16 in. wall stud spacing for secure mounting
General Information
Name: Eaton Tripp Lite SRWALLBRKT6U SmartRack Vertical Wall Mount Rack Bracket, 200lb (90.7kg), 2-Post, 6U
Category: Data Comm & Networking, Racks & Enclosures, Rack Accessories
UPC Code: 037332203212
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SRWALLBR Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRWALLBRKT6U Packaged Quantity 1 Product Line SmartRack Product Model SRWALLBRKT6U Product Name SmartRack 6U Vertical Wall-Mount Rack Bracket Product Type Mounting Bracket Weight 8.38 lb
-
Device Supported Network Switch, Server, UPS Maximum Load Capacity 200 lb
-
Color Black Depth 11.2" Height 11.2" Rack Height 6U Width 19.7"
-
Limited Warranty 5-Year
-
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SRWALLBRKT6U SmartRack 6U Vertical Wall-Mount Rack Bracket
- (12) M6 screws
- (12) M6 cup washers
- (12) M6 cage nuts
- Installation guide
