Silent Knight Addressable Fire Alarm Control Panel
Shop all Silent Knight by Honeywell

Silent Knight 006820 Silent Knight 6820 1110-Point Addressable Fire Alarm Control Panel (Replaces 5820XL)

6820|SK-6820
Shop all Silent Knight by Honeywell

Silent Knight 006820 Silent Knight 6820 1110-Point Addressable Fire Alarm Control Panel (Replaces 5820XL)

6820|SK-6820
Key Features
  • Complies with UL 864 10th Edition and UL 2572 2nd Edition Standards
  • Expandable SLC loops to 1110 (SK) or 635 (SD) point capacity
  • Six Flexput circuits for NAC outputs or auxiliary power
Key Features
  • Complies with UL 864 10th Edition and UL 2572 2nd Edition Standards
  • Expandable SLC loops to 1110 (SK) or 635 (SD) point capacity
  • Six Flexput circuits for NAC outputs or auxiliary power

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Complies with UL 864 10th Edition and UL 2572 2nd Edition Standards
  • Expandable SLC loops to 1110 (SK) or 635 (SD) point capacity
  • Six Flexput circuits for NAC outputs or auxiliary power
Silent Knight by Honeywell

Silent Knight 006820 Silent Knight 6820 1110-Point Addressable Fire Alarm Control Panel (Replaces 5820XL)

6820 | SK-6820

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

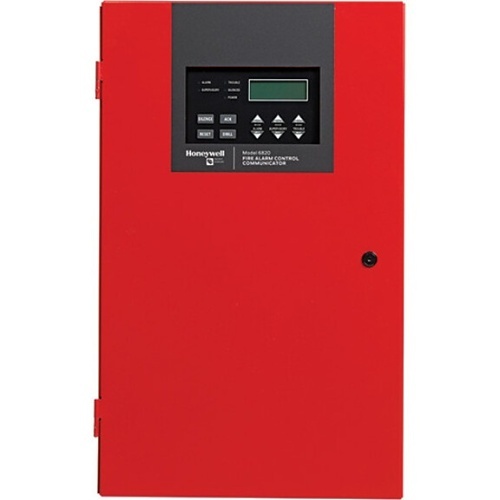

Product Overview

The 6820 is the latest intelligent addressable FACP (Fire Alarm Control Panels) from Silent Knight and is a direct replacement for the 5820XL FACP. The FACP has one built-in SLC (signaling line circuit), which can support 159 System Sensor® SK detectors and 159 SK modules, or 127 Hochiki® SD protocol devices. Additional SLC loops can be added for a maximum of 1110 (SK) or 635 (SD) points per panel.

Main Features

  • Complies with UL 864 10th Edition and UL 2572 2nd Edition Standards
  • Expandable SLC loops to 1110 (SK) or 635 (SD) point capacity
  • Six Flexput circuits for NAC outputs or auxiliary power
  • Selectable strobe synchronization for Amseco®, System Sensor, Wheelock®, and Gentex® devices
  • Built-in DACT with IP and optional cellular reporting
  • Built-in USB interface for quick and easy programming
  • JumpStart® auto programming reduces installation time
  • 999 software zones and 999 output groups for flexible design options
  • 23 preset notification cadence patterns (including ANSI® 3.41)
  • Allows up to 24 SBUS devices

General Information

Name: Silent Knight 006820 Silent Knight 6820 1110-Point Addressable Fire Alarm Control Panel (Replaces 5820XL)
Category: Silent Knight by Honeywell, Fire, Fire Control Panels, Fire Alarm Control Panels
UPC Code: 783196014227
Country of Origin: United States. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Manufacturer Brochure
