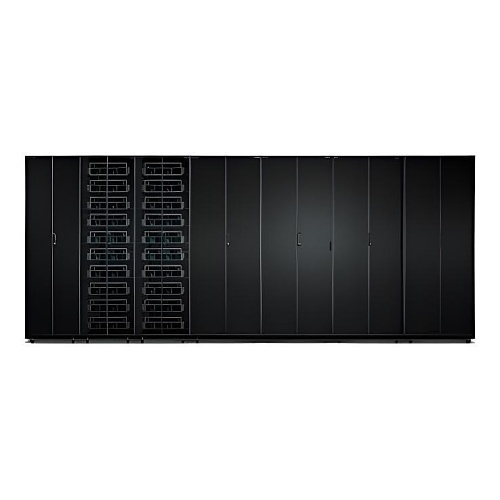

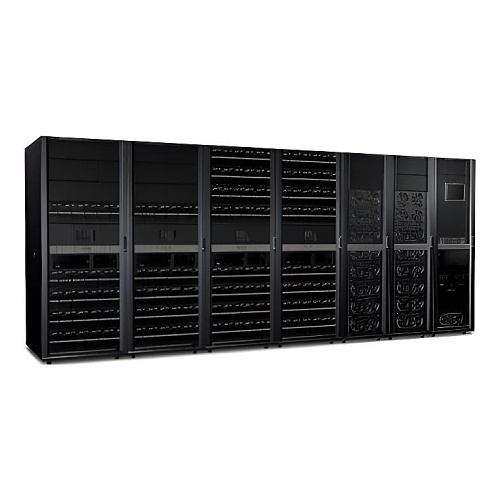

APC SY400K500DL-PD Symmetra PX 400kW Scalable to 500kW, 400kW, 500kW
SY400K500DL-PD|2G-0K500DLPP
APC SY400K500DL-PD Symmetra PX 400kW Scalable to 500kW, 400kW, 500kW
SY400K500DL-PD|2G-0K500DLPP
Key Features
- High-performance 3-phase power protection
- Modular and scalable design
- Industry-leading efficiency
Key Features
- High-performance 3-phase power protection
- Modular and scalable design
- Industry-leading efficiency
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- High-performance 3-phase power protection
- Modular and scalable design
- Industry-leading efficiency
APC by Schneider Electric
APC SY400K500DL-PD Symmetra PX 400kW Scalable to 500kW, 400kW, 500kW
SY400K500DL-PD | 2G-0K500DLPP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
A high-performance, 3-phase, modular, scalable, power protection solution with industry-leading efficiency, capacity, and performance for medium to large data centers and mission critical environments.
Main Features
- High-performance 3-phase power protection
- Modular and scalable design
- Industry-leading efficiency
- Suitable for medium to large data centers
- Ideal for mission critical environments
General Information
Name: APC SY400K500DL-PD Symmetra PX 400kW Scalable to 500kW, 400kW, 500kW
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS, ADI Pro Rewards
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number 2G-0K500DLPP Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SY400K500DLPD Packaged Quantity 1 Product Line Symmetra PX Product Name Symmetra PX 400kW Modular UPS Product Type Double Conversion Online UPS Sector Intrusion Weight 16391.37 lb
-
Output Voltage 400V AC, 415V AC, 480V AC Phase Three Phase Receptacle Detail 1 x Hard Wire 4-wire (3PH + G), 1 x Hard Wire 5-wire (3PH + N + G) Receptacle Type Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G) Transfer Time 2 ms
-
Battery Characteristics Valve-regulated Battery Chemistry Lead Acid Battery Life 8 Year Battery Recharge Time 3.5-Hour
-
Maximum Operating Elevation 3333 ft Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 50000 ft Thermal Dissipation 14.51 kW
-
EPO Port Yes
-
Network Management Modbus, Network Management Card 2
-
Application/Usage Data Center, Mission Critical Equipment, Server Color Black Depth 42.1" Form Factor Modular Height 78.4" Package Type Pack Width 17.1 ft
-
Input Frequency 40 Hz|70 Hz Input Voltage 400V AC, 415V AC, 480V AC Output Frequency 50 Hz|60 Hz Waveform Type Sine Wave
-
Limited Warranty 1-Year
-
Environmental Certification UL Environmentally Friendly Yes
