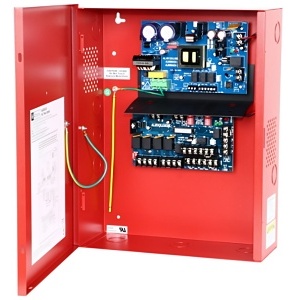

Altronix AL602ULADA replaces AL600ULADA NAC Power Supply, 2 Class A or 4 Class B Outputs, 24VDC @ 6.5A, 120VAC, Red BC400 Enclosure
AL602ULADA
|AX-AL602ULAD
Shop all Altronix
Altronix AL602ULADA replaces AL600ULADA NAC Power Supply, 2 Class A or 4 Class B Outputs, 24VDC @ 6.5A, 120VAC, Red BC400 Enclosure
AL602ULADA | AX-AL602ULAD
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the Altronix AL602ULADA, a highly efficient and budget-friendly voltage-regulated remote NAC Power Extender. Designed for seamless integration with any 24-volt Fire Alarm Control Panel (FACP), this power supply is perfect for expanding Notification Appliance Circuits (NAC) while adhering to ADA requirements. With a robust output of 24VDC at 6.5A, it ensures reliable performance for your system accessories. Housed in a durable red BC400 enclosure, the AL602ULADA is not just functional but also aesthetically pleasing. Upgrade your fire alarm system today with this essential power supply and experience enhanced reliability and efficiency!
Main Features
- 2-Wire Horn/strobe Sync mode allows audible notification appliances (horns) and visual notification appliances (strobes) to be silenced/deactivated at the same time
- Signal circuit trouble memory (helps identify intermittent loop problems)
- Ground fault detection
- Compatible with 12VDC or 24VDC fire panels
- Output loop supervision steered to Input 1 or Input 2
- Common trouble input and output for external trouble signals tie-in
General Information
Name: Altronix AL602ULADA replaces AL600ULADA NAC Power Supply, 2 Class A or 4 Class B Outputs, 24VDC @ 6.5A, 120VAC, Red BC400 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239934133
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number AX-AL602ULAD Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number AL602ULADA Product Line ADA Product Model AL602ULADA Product Name Proprietary Power Supply Product Series ULADA Product Type Proprietary Power Supply
Output Voltage 24V DC
NDAA Compliant Yes
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
ADI Part Number Replaces AX-602UL2ADA, AX-AL400ULAR Model Number Replaces AL400ULADAR, AL602UL2ADA
Color Red Depth 5" Height 15.5" Weight 9.6lb Width 12"
Input Voltage 120V AC Output Current 6.5A
Limited Warranty Lifetime
Compatibility Fire Alarm System Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Indoor
