Image of P6-S62134SA
Shop all Lantronix

Lantronix S6210-3040-SA DS3-T3 Coax to Fiber (SFP) Converter, 3-Channel, Standalone N/A

S6210-3040|P6-S62134SA
Shop all Lantronix

Lantronix S6210-3040-SA DS3-T3 Coax to Fiber (SFP) Converter, 3-Channel, Standalone N/A

S6210-3040|P6-S62134SA
Key Features
What's Included
  • AIS (Alarm Indication Signal)
  • Coax Line Build Out
  • Switch selectable for DS3/T3 or E3
Key Features
What's Included
  • AIS (Alarm Indication Signal)
  • Coax Line Build Out
  • Switch selectable for DS3/T3 or E3

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • AIS (Alarm Indication Signal)
  • Coax Line Build Out
  • Switch selectable for DS3/T3 or E3
Lantronix

Lantronix S6210-3040-SA DS3-T3 Coax to Fiber (SFP) Converter, 3-Channel, Standalone N/A

S6210-3040 | P6-S62134SA

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

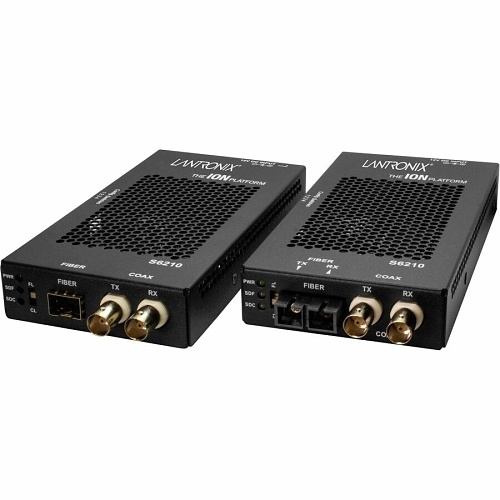

Stand-alone DS3-T3/E3 Network Interface Device

DS3 - T3/E3 Coax over Fiber

The ION S6210 is a managed stand-alone media converter that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The S6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.

The S6210 DS3-T3/E3 converters must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6210 is linked to a C6210 card installed in a managed ION chassis.

Main Features

  • AIS (Alarm Indication Signal)
  • Coax Line Build Out
  • Switch selectable for DS3/T3 or E3
  • Remote firmware upgrade
  • Loopback - Coax and Fiber
  • LEDs for immediate visual status
  • Supports dual or single fiber
  • Supports multimode and single mode fiber at a variety of distances
  • Supports CWDM SFPs
  • SNMP management when used with ION chassis and management module

General Information

Name: Lantronix S6210-3040-SA DS3-T3 Coax to Fiber (SFP) Converter, 3-Channel, Standalone N/A
Category: Lantronix, Video Surveillance, Data Comm & Networking, Networking Devices, Media Converters & Transceivers, Media Converters, Media Converters
UPC Code: 783384247741
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Manufacturer Brochure
