AXIS T8415 Wireless Installation Tool, Battery Driven Wi-Fi Access Point with PoE+
T8415|Z4-5506231
AXIS T8415 Wireless Installation Tool, Battery Driven Wi-Fi Access Point with PoE+
T8415|Z4-5506231
Key Features
- Multiple camera discovery, including ONVIF
- Native app for installation of Axis cameras
- Powerful battery
Key Features
- Multiple camera discovery, including ONVIF
- Native app for installation of Axis cameras
- Powerful battery
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Multiple camera discovery, including ONVIF
- Native app for installation of Axis cameras
- Powerful battery
Axis Communications
AXIS T8415 Wireless Installation Tool, Battery Driven Wi-Fi Access Point with PoE+
T8415 | Z4-5506231
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

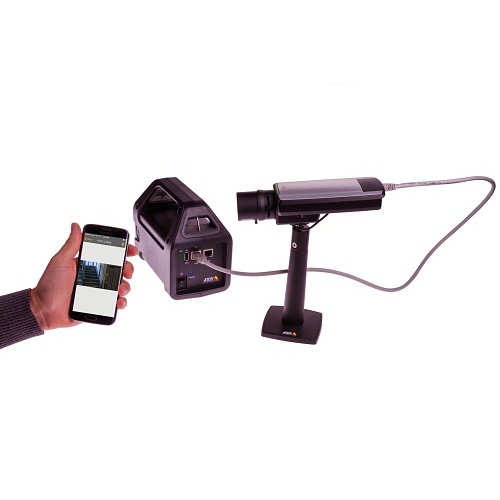

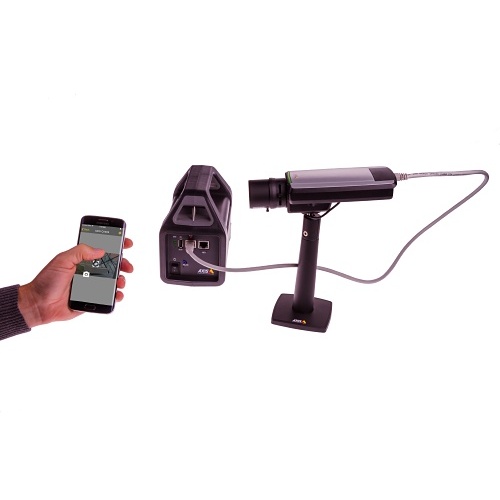

AXIS T8415 Wireless Installation Tool is a battery-powered handheld device that connects directly to a camera and displays live video. With its powerful battery, the tool can power up an Axis PoE camera up to 30 W for hours. The built-in Wi-Fi function in AXIS T8415 connects within seconds to an installer’s smartphone or tablet so the camera’s live view can be accessed in a convenient manner. Basic camera functions, such as focus, IP address and image rotation can be adjusted via the smartphone. Free-of-charge app on the smartphone (iOS or Android) downloadable from the App Store or Google Play.
Main Features
- Multiple camera discovery, including ONVIF
- Native app for installation of Axis cameras
- Powerful battery
- Support for PoE+
- Wireless connection to any smartphone
General Information
Name: AXIS T8415 Wireless Installation Tool, Battery Driven Wi-Fi Access Point with PoE+
Category: Axis Communications, Data Comm & Networking, Wireless Access Points
UPC Code: 7331021046702
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-5506231 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 5506-231 Packaged Quantity 1 Product Line T Product Model T8415 Product Name AXIS T8415 WIRELESS INSTALL TOOL Product Series T84 Product Type Installation Tools Weight 4.85lb
-
Media Type Supported Twisted Pair
-
Battery Chemistry Lead Acid Battery Size Supported 12V Number of Batteries Supported 1
-
Operating Temperature (T-T) 0-50°C
-
Audio Line Out No HDMI No Network (RJ-45) Yes Number of Network (RJ-45) Ports 2 Serial Port No VGA No
-
Ethernet Technology Fast Ethernet
-
ADI Part Number Replaces Z4-5900144 Model Number Replaces 5900-144
-
Application/Usage IP Camera Testing Depth 8.1" Height 5.9" Width 3.9"
-
Input Voltage 12V DC PoE (RJ-45) Port Yes
-
Limited Warranty 3-Year
-
Certifications EN 55032 Class A, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), KC KN32 Class B, KC KN35, VCCI Class B Country of Origin CN Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes
