Image of BK-P2RLPALL

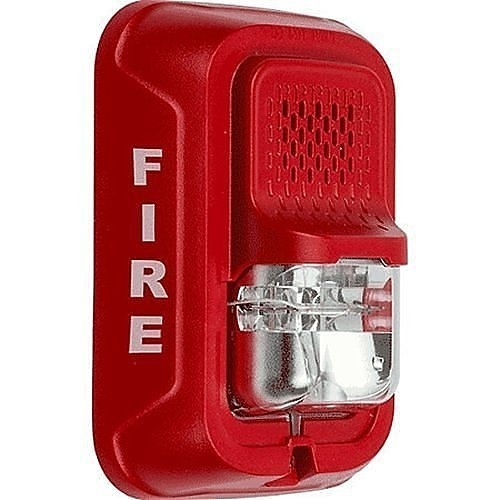

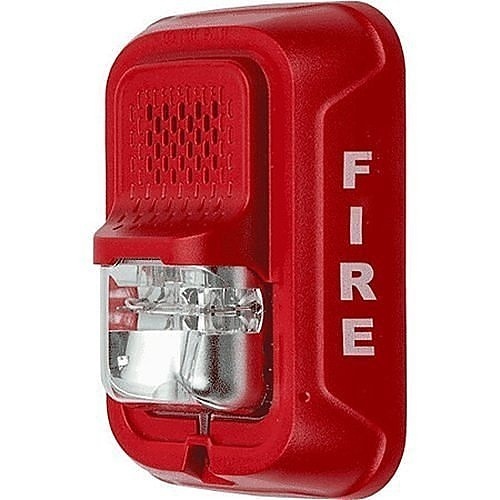

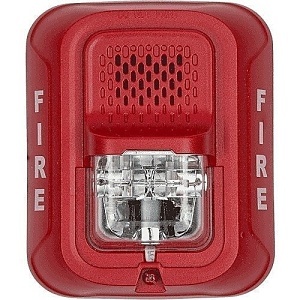

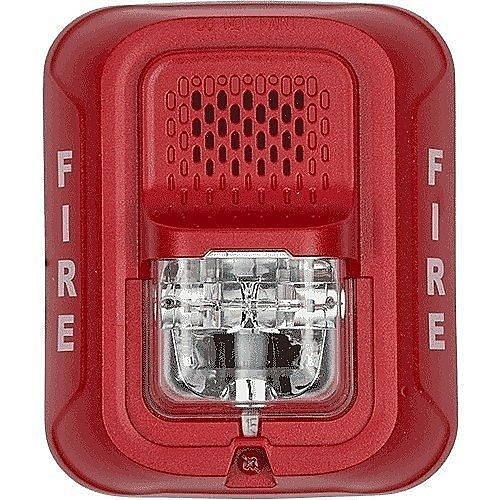

System Sensor P2RL Pallet of (560) L-Series Indoor Selectable Output Horn Strobe, 2-Wire, Wall Mount, "FIRE" Marking, Red

P2RL|BK-P2RLPALL

System Sensor P2RL Pallet of (560) L-Series Indoor Selectable Output Horn Strobe, 2-Wire, Wall Mount, "FIRE" Marking, Red

P2RL|BK-P2RLPALL
Key Features
  • Updated Modern Aesthetics
  • Small profile devices for Horns and Horn Strobes
  • Plug-in design with minimal intrusion into the back box
Key Features
  • Updated Modern Aesthetics
  • Small profile devices for Horns and Horn Strobes
  • Plug-in design with minimal intrusion into the back box

Sign In for Dealer Pricing

Become an ADI Customer
Legrand
Key Features
  • Updated Modern Aesthetics
  • Small profile devices for Horns and Horn Strobes
  • Plug-in design with minimal intrusion into the back box
System Sensor

System Sensor P2RL Pallet of (560) L-Series Indoor Selectable Output Horn Strobe, 2-Wire, Wall Mount, "FIRE" Marking, Red

P2RL | BK-P2RLPALL

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

L-Series horn strobes are rich with features guaranteed to cut installation time and maximize profits. Intended for full building notification as well as on the property ground, they produce a loud sound to notify occupants to evacuate the buildings; the strobe is intended to notify those that may have a hearing impairment. Features include a universal mounting plate with a preliminary snap-in feature to hold the product in place for the screw attachment, 7 field-selectable candela settings for wall and ceiling mount devices, and rotary switches to select horn tone and volume settings. Compatible with 12- or 24-volt systems. L-Series horn strobes are listed to UL 1971 and UL 464 for public mode evacuation.

Main Features

  • Updated Modern Aesthetics
  • Small profile devices for Horns and Horn Strobes
  • Plug-in design with minimal intrusion into the back box
  • Tamper-resistant construction
  • Horn rated at 88+ dBA at 16 volts
  • Rotary switch for horn tone and two volume selections
  • Mounting plate for all standard and all compact wall units
  • Mounting plate shorting spring checks wiring continuity before device installation
  • Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185
  • Automatic selection of 12- or 24-volt operation at 15 and 30 candela

General Information

Name: System Sensor P2RL Pallet of (560) L-Series Indoor Selectable Output Horn Strobe, 2-Wire, Wall Mount, "FIRE" Marking, Red
Category: System Sensor, Fire, Fire Notification Appliances, Horn Strobes, ADI Pro Rewards
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.

Specifications

Product Documents and Resources
