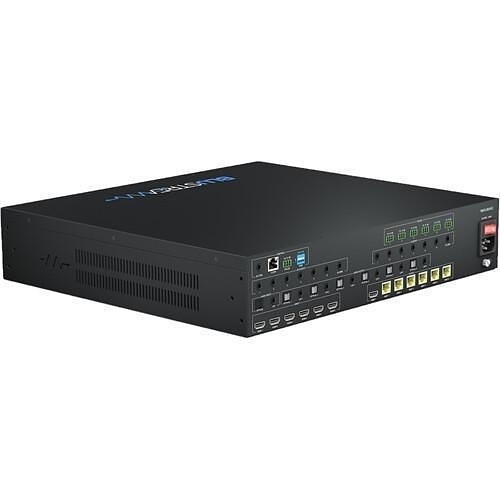

Image of 6E-HMXL66ARC
Shop all Blustream

Blustream HMXL66ARC 6x6 HDBaseT CSC ARC Matrix, 70m

HMXL66ARC|6E-HMXL66ARC
Shop all Blustream

Blustream HMXL66ARC 6x6 HDBaseT CSC ARC Matrix, 70m

HMXL66ARC|6E-HMXL66ARC
Key Features
  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Features 6 x HDMI inputs which can be independently routed to 8 x HDBaseT outputs
Key Features
  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Features 6 x HDMI inputs which can be independently routed to 8 x HDBaseT outputs

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Features 6 x HDMI inputs which can be independently routed to 8 x HDBaseT outputs
Blustream

Blustream HMXL66ARC 6x6 HDBaseT CSC ARC Matrix, 70m

HMXL66ARC | 6E-HMXL66ARC

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The HMXL66ARC HDBaseT Matrix delivers new levels of advanced audio integration into our Essential range of 4K video matrix solutions. The HMXL66ARC is a 6x6 HDMI 2.0 4K 60Hz matrix that uses CSC (Colour Space Conversion) technology to deliver 18Gbps HDMI over distances of up to 40m (1080p to 70m).The HMXL66ARC features enhanced audio routing via an integrated 20x6 audio matrix. This enables the audio both from displays and sources, to be embedded and routed through the system at the users discretion.

Main Features

  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Features 6 x HDMI inputs which can be independently routed to 8 x HDBaseT outputs
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of matrix
  • Supports bi-directional IR and RS-232 on all HDBaseT outputs
  • Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
  • Supports 24V PoC (Power over Cable) to power compatible Blustream RX70CS receivers
  • Supplied with Blustream IR receivers and emitters
  • Advanced EDID management and HDCP 2.2 compliant

General Information

Name: Blustream HMXL66ARC 6x6 HDBaseT CSC ARC Matrix, 70m
Category: Blustream, Pro AV, Commercial Video Signal Distribution, Pro HDMI Switchers
UPC Code: 9340242003669
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Additional Resources
