Hanwha TNV-C8011RW T Series 5MP AI IR Wall Mount Camera, 1.6mm Fixed Lens, 15m IR, White

TNV-C8011RW|SQ-TNVC801RW

Shop all Hanwha Vision

Hanwha TNV-C8011RW T Series 5MP AI IR Wall Mount Camera, 1.6mm Fixed Lens, 15m IR, White

TNV-C8011RW|SQ-TNVC801RW

Key Features

Analytics events based on AI engine
AI based loitering detection and line crossing detection
5MP Wide Panoramic View (H: 175°) with Eye level monitoring

Key Features

Analytics events based on AI engine
AI based loitering detection and line crossing detection
5MP Wide Panoramic View (H: 175°) with Eye level monitoring

Sign In for Dealer Pricing

Become an ADI Customer

Key Features

Analytics events based on AI engine
AI based loitering detection and line crossing detection
5MP Wide Panoramic View (H: 175°) with Eye level monitoring

Hanwha Vision

Hanwha TNV-C8011RW T Series 5MP AI IR Wall Mount Camera, 1.6mm Fixed Lens, 15m IR, White

TNV-C8011RW | SQ-TNVC801RW

Please sign in to view pricing and availability and to add to cart.

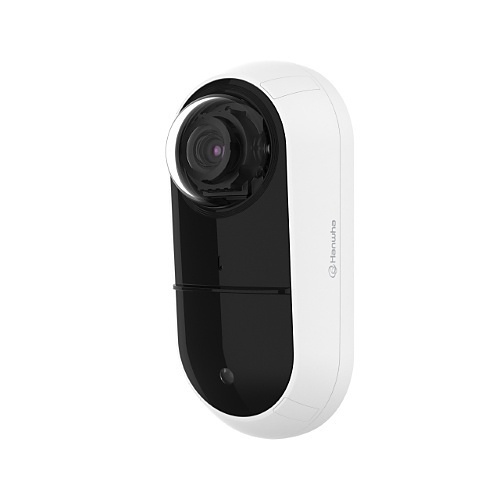

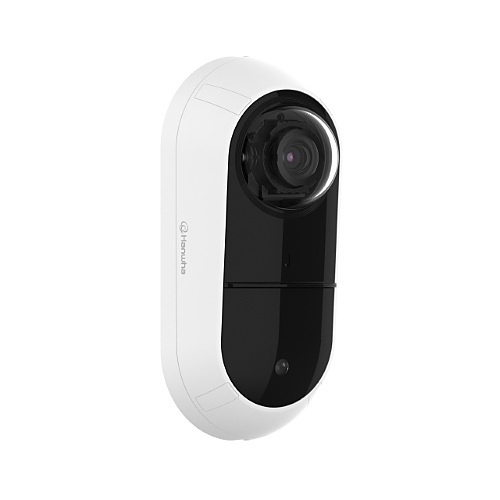

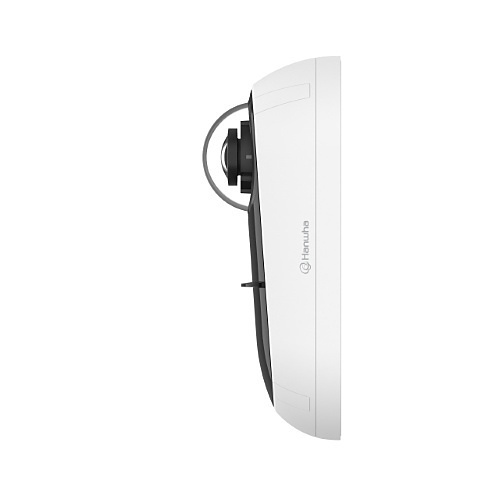

The TNV-C8011RW is a 5MP AI IR Wall Mount Camera designed for advanced surveillance applications. With its innovative features and robust design, this camera offers comprehensive monitoring capabilities, making it ideal for various security needs. From AI-based analytics to anti-ligature design, it provides enhanced security and efficiency in surveillance operations.

Main Features

Analytics events based on AI engine
AI based loitering detection and line crossing detection
5MP Wide Panoramic View (H: 175°) with Eye level monitoring
15m IR Viewable Length, 25° Tilt Lens
Compact Size and Anti Ligature Design (Rounded Edge)
WDR 120dB, SSNR, WiseNRII (Based on AI engine)
Business intelligence (People counting, Vehicle counting, Queue management, Heatmap)
WiseStreamⅢ (Based on AI engine)
Built in Microphone
IP66, IK10

General Information

Name: Hanwha TNV-C8011RW T Series 5MP AI IR Wall Mount Camera, 1.6mm Fixed Lens, 15m IR, White

Category: Hanwha Vision, Video Surveillance, IP Cameras, Covert Cameras

UPC Code: 8801089228246

Country of Origin: Vietnam. Country of origin is subject to change.

Specifications

ADI Part Number

SQ-TNVC801RW

Brand Name

Hanwha Vision

Manufacturer

Hanwha Vision

Manufacturer Part Number

TNV-C8011RW

Product Model

TNV-C8011RW

Product Name

5MP AI, IR Wall Mount Panoramic Camera

Product Series

Product Type

Panoramic Camera

Weight

1.32 lb

Connectivity Technology

Wired

Field of View

H: 175°, V: 125°, D: 175°

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

1.6mm

Night Vision

Yes

Night Vision Type

Infrared

Video Formats

H.264, H.264B, H.264H, H.264M, H.265, H.265B, H.265H, H.265M, MJPEG

Image Sensor Type

CMOS

Night Vision Distance

49.21 ft

Wide Dynamic Range

Yes

Ingress Protection Rating

IP66

TAA Compliant

Yes

Maximum Video Resolution

2592 x 1944

Maximum Operating Temperature

131°F

Minimum Operating Temperature

-22°F

Operating Humidity

<95% RH

Longest Shutter Speed

1/5 Second

Minimum Illumination

0.0038 lux

Shortest Shutter Speed

1/12000 Second

Network (RJ-45)

Yes

Lens Included

Yes

Maximum Focal Length

1.6 mm

Remote Management

Yes

Color

White

Depth

22.4"

Durability

Dustproof, Impact Resistant, Waterproof

Height

65.5"

Width

31.5"

Mount Type

Ceiling Mount, Conduit Mount, Gang Box Mount, Wall Mount

Storage Type

Memory Card

Maximum Resolution

1280 x 720

Limited Warranty

5-Year

Country of Origin

Features

Back Light Compensation (BLC), Built-in HLC, Built-in IR LED, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Motion Detection, Privacy Masking, Wide Dynamic Range

Impact Protection Rating

IK10
