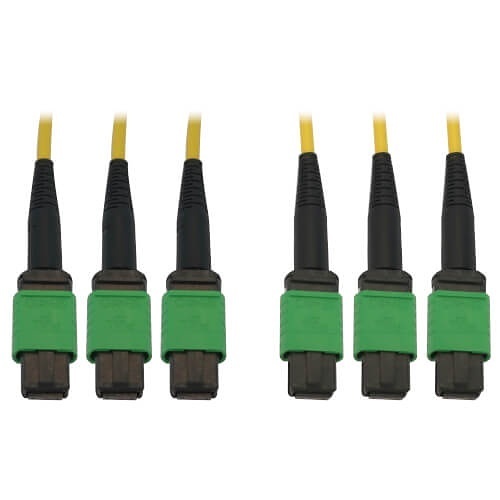

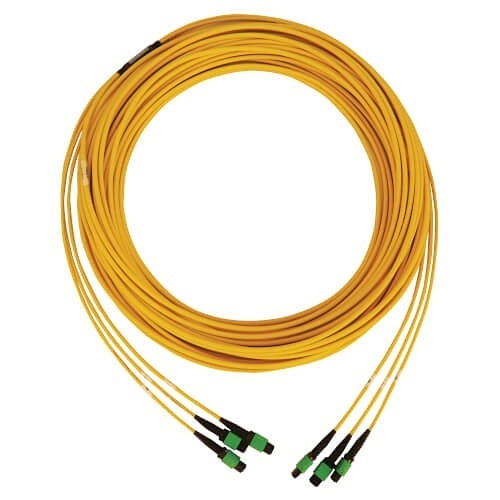

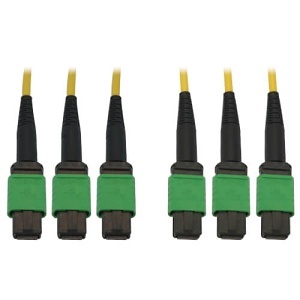

Tripp Lite N392B-30M-3X8AP 40/100G Singlemode 9/125 OS2 Fiber Optic Cable, 3x8F MTP/MPO-APC F/F, LSZH, 30m (98'), Yellow
Tripp Lite N392B-30M-3X8AP 40/100G Singlemode 9/125 OS2 Fiber Optic Cable, 3x8F MTP/MPO-APC F/F, LSZH, 30m (98'), Yellow
- Supports 40/100 GbE for high-density data networking
- Ideal for 100G Ethernet up to 100m at 1550 nm
- Backward compatible with 10GB and 25 Gb networks
- Supports 40/100 GbE for high-density data networking
- Ideal for 100G Ethernet up to 100m at 1550 nm
- Backward compatible with 10GB and 25 Gb networks
Sign In for Dealer Pricing
Become an ADI Customer- Supports 40/100 GbE for high-density data networking
- Ideal for 100G Ethernet up to 100m at 1550 nm
- Backward compatible with 10GB and 25 Gb networks
Tripp Lite N392B-30M-3X8AP 40/100G Singlemode 9/125 OS2 Fiber Optic Cable, 3x8F MTP/MPO-APC F/F, LSZH, 30m (98'), Yellow
N392B-30M-3X8AP | TC-N392B30M3
Please sign in to view pricing and availability and to add to cart.
Product Overview
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This singlemode 9/125 OS2 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.
100% Tested for Low Insertion Loss and Back Reflection

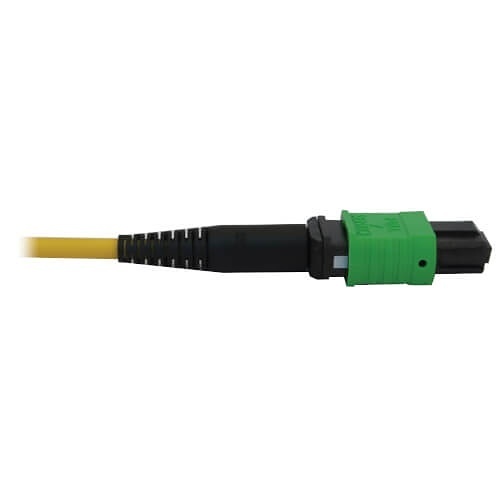

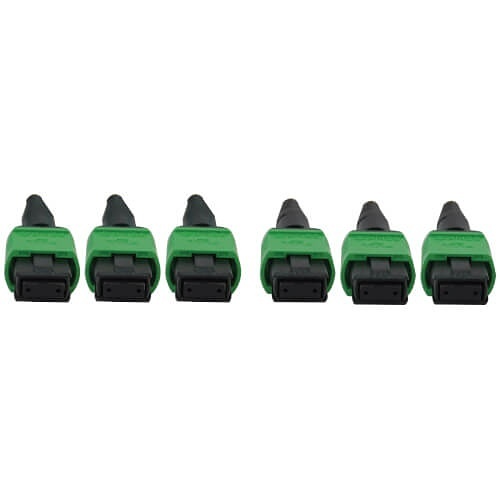

The factory-terminated 8-fiber MTP/MPO APC connectors help minimize back reflection with low insertion loss. The connector's slim boot and green housing allow easy one-handed installation and removal of the cable.
Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
Main Features
- Supports 40/100 GbE for high-density data networking
- Ideal for 100G Ethernet up to 100m at 1550 nm
- Backward compatible with 10GB and 25 Gb networks
- Factory-terminated MTP/MPO APC Connectors for low insertion loss
- Yellow jacket for easy identification and reduced misidentification
- LSZH Jacket limits toxic smoke emission in case of combustion
General Information
Specifications
-
ADI Part Number TC-N392B30M3 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number N392B30M3X8AP Product Model N392B-30M-3X8AP Product Name N392B-30M-3X8AP Fiber Optic Trunk Network Cable Product Type Network Cable
-
Cable Type Fiber Optic Core/Cladding Diameter 9/125 µm Device Supported Network Device, Patch Panel, Switch Fiber Category OS2 Fiber Optic Mode Single-mode Jacket Material LSZH Jacket Type LSZH Solid or Stranded Stranded
-
Fiber Count 24
-
Connector Type (3)Female 8 Strand MTP/MPO
-
Data Transfer Rate 400 Gbit/s
-
Cable Length 98' Color Yellow
-
Limited Warranty Lifetime
-
Country of Origin CN Environmentally Friendly Yes Features Angled Physical Contact (APC), Bendable, Push-Pull Tab, Stranded Package Contents - N392B-30M-3X8AP 40/100G Singlemode 9/125 OS2 Fiber Optic Cable, Yellow, 30 m (98 ft.)
