Product Overview

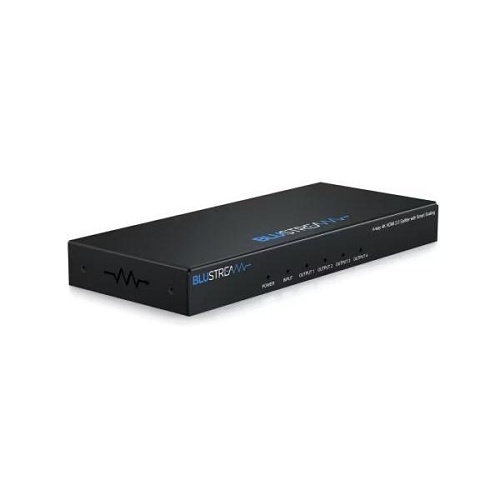

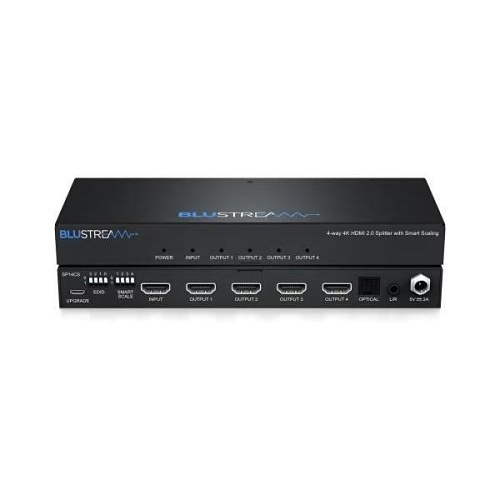

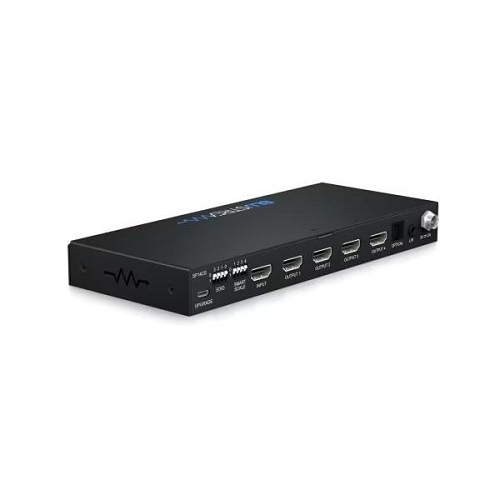

Our SP14CS 4K HDMI 2.0 splitter distributes a single HDMI source to four simultaneous outputs with both digital (S/PDIF) and analogue audio breakout. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K at 60Hz 4:4:4 with automatic video down conversion on each output.
Main Features
- 1x HDMI Input that is replicated to 4x HDMI outputs
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports up to 4K UHD 60Hz 4:4:4
- Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- HDMI Audio breakout to analogue L/R audio and optical digital outputs concurrently
- CEC (Consumer Electronic Command) will only pass between the source device and the sink connected to output 1
- Advanced EDID management
- HDCP 2.2 Support
General Information
Name: Blustream SP14CS 4-Way 4K HDMI 2.0 HDCP 2.2 Splitter
Category: Blustream, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Splitters, Pro HDMI Splitters
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 6E-SP14CS Brand Name Blustream Manufacturer Part Number SP14CS
ADI Part Number Replaces 6E-SP14ABV2 Model Number Replaces SP14AB-V2
Depth 3.31" Height 0.91" Width 7.99"
Package Contents 1x 5V/2A DC power supply, 1x Mounting Kit, 1x Quick Reference Guide, 1x SP14CS
